20 circuits at 1.25 mm pitch — board-to-board signal routing

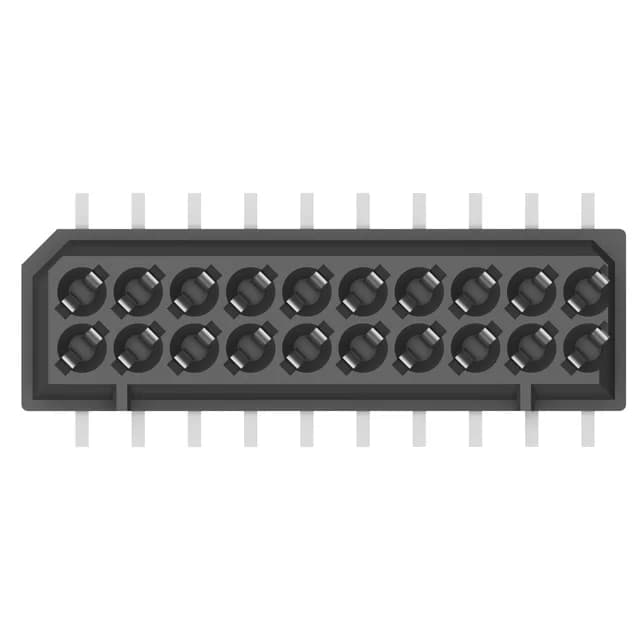

The 5-175638-0: This is a 20-position, dual-row board-to-board receptacle from TE's Fine Pitch series. The 1.25 mm pitch sets the PCB footprint density — 20 circuits in two rows means the connector body runs about 12.5 mm long, fitting tight board stacks where every millimeter of z-height and edge space is budgeted. Tin keeps the per-unit cost down for moderate-cycle applications — expect a few hundred mates before wear-through, not the thousands you'd get with gold flash. The 0.5 A ceiling is typical for signal-level interconnects at this pitch; the narrow contact spacing limits current before the contact itself does.
SMT termination with board guide for alignment
The guide helps align the connector during pick-and-place and keeps the contacts from skewing during reflow — useful when the board layout has tight keep-out zones around the footprint. In a low-vibration environment like a stationary control board this is fine; for portable or mobile gear a latch would be preferable.
