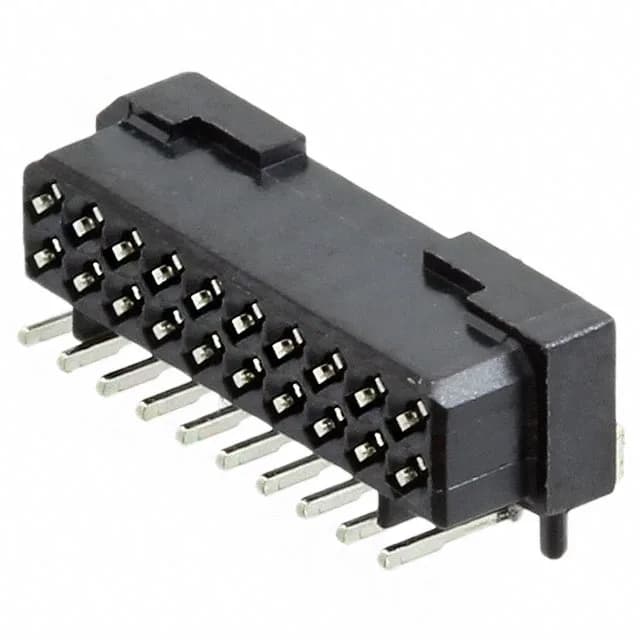

TE Connectivity AMP Connectors Fine Pitch receptacle, order code 5-175639-0, 20 positions, dual row, 0.049" (1.25mm) pitch, 0.5 A, 50 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Female Socket |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Board Guide |
| Termination | Solder |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 20 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - mating | Tin |
The 5-175639-0 is the 20-circuit member of TE's Fine Pitch receptacle line, a board-to-board style with a 0.049" (1.25mm) pitch and dual-row layout. The surface-mount right-angle orientation suits tight board-stacking profiles.
The 5-175639-0 is listed as Obsolete by TE Connectivity AMP Connectors.
No pin-compatible alternative is recorded in the TE Fine Pitch series.
Sourced through independent surplus channels. Availability and pricing are confirmed per RFQ against the specific quantity.
