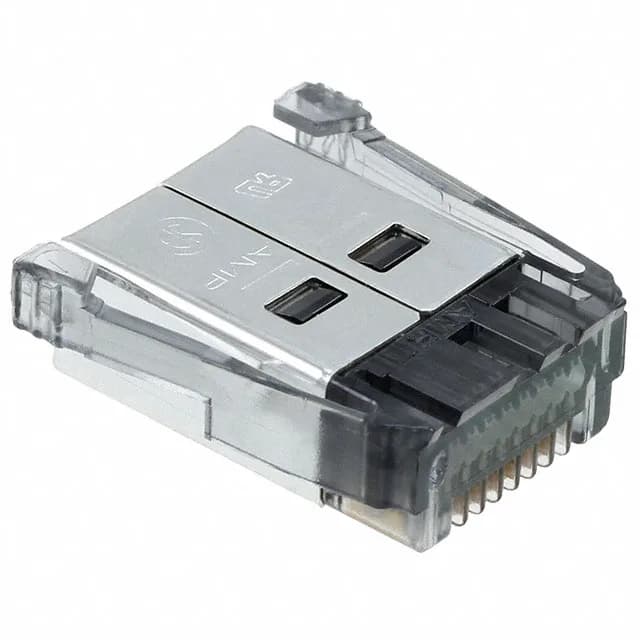

The shielded brass housing and gold-plated contacts rated 1.5 A per circuit at 30 V place it squarely in the signal-level interconnect class — think SCSI, IDE, or low-voltage data bus applications where crosstalk rejection matters more than current capacity. The 24 AWG wire gauge and crimp termination suit it for factory-terminated harnesses or field-replaceable cable assemblies where the shield continuity must survive repeated mating cycles.
The shielded brass housing provides a continuous ground path around the signal contacts, which means the cable assembly must include a drain wire or foil shield termination to the connector shell for the shield to function.
Cable and Termination Requirements
This plug is specified for 24 AWG ribbon cable only — the crimp termination and contact spacing are designed for that specific conductor gauge and ribbon pitch. Using a different wire gauge or cable type will not seat correctly in the crimp barrels or align with the contact slots. The clear/gray polycarbonate housing lets you visually confirm the ribbon conductors are fully inserted before crimping, which is a practical check on the assembly line.
