TE Connectivity AMP Connectors 5-1775333-0 — FFC / FPC & Ribbon Connectors

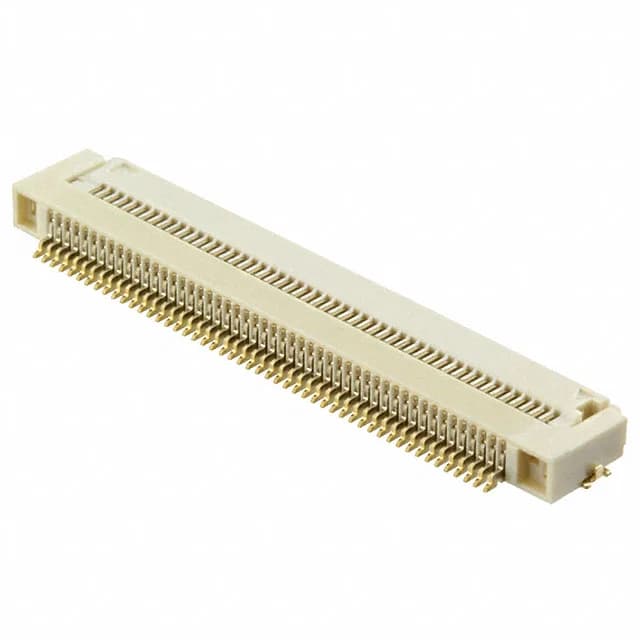

TE 5-1775333-0 FPC Connector, 50 Pos, 0.50mm, ZIF

MPN5-1775333-0
Obsolete

TE Connectivity AMP Connectors FPC connector, order code 5-1775333-0, 50 positions, 0.020" (0.50mm) pitch, gold-plated bottom contacts, zero insertion force (ZIF) flip lock, surface-mount right-angle, solder termination.

$1.1504Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

5-1775333-0 key specifications
ParameterValue
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating250V
Current rating0.5A
Operating temperature-20°C ~ 85°C
Housing colorNatural
Actuator colorNatural
Contact materialPhosphor Bronze
Housing materialLiquid Crystal Polymer (LCP)
Actuator materialLiquid Crystal Polymer (LCP)

All specifications

5-1775333-0 additional specifications
ParameterValue
Height above board0.081\" (2.05mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Contact finishGold
Locking featureFlip Lock
FFC, FCB thickness0.30mm
Positions50
Contact finish thickness50.0µin (1.27µm)

Product details

50-position FPC with ZIF flip lock

The 5-1775333-0 is the 50-position member of TE's 1775333 FPC connector line, using a zero insertion force (ZIF) flip-lock actuator to secure the flex circuit. Gold-plated bottom contacts rated 0.5 A per circuit at 250 V, on a 0.020" (0.50mm) pitch. The 0.30 mm FPC thickness and straight cable entry match standard flat-flex assemblies.

Production status and sourcing

Available through independent surplus channels; quantities are lot-specific and confirmed at RFQ. The original package was Tape & Reel (TR).

Frequently asked questions

What is the pitch and position count of the 5-1775333-0?

The 5-1775333-0 has 50 positions on a 0.020" (0.50mm) pitch, with bottom contacts for a straight FPC cable end.
