What this 3-position SMT header brings to the board
Surface mount termination with Pick and Place compatible packaging (Tape & Reel) streamlines reflow assembly. The natural insulation color aids visual inspection on the line.

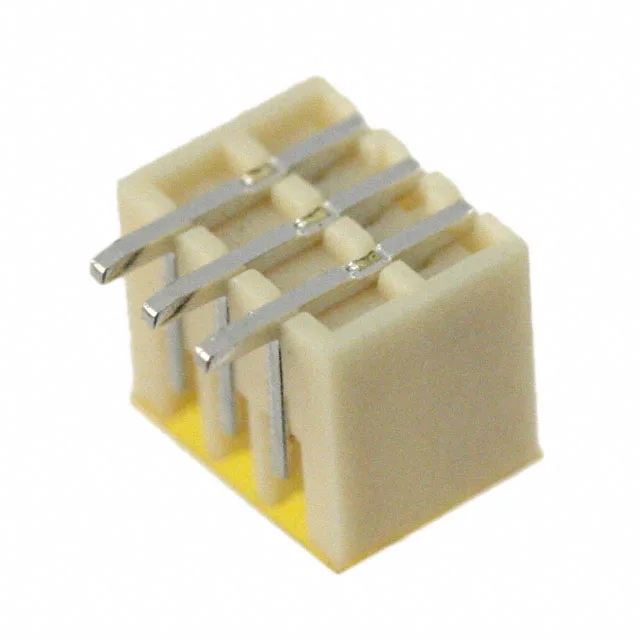

5-1775443-3 TE Connectivity AMP Connectors Pin Header SMD
MPN5-1775443-3
Active
TE Connectivity AMP Connectors High Performance Interconnect (HPI) series, Board to Cable/Wire, 3 Positions, 1.50mm Pitch, Surface Mount, Shrouded - 4 Wall, Tin Contacts, 3A, 250VAC, UL94 V-0, -55°C ~ 105°C, RoHS3 Compliant, Active.
$0.4060Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesHigh Performance Interconnect (HPI)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 3 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
What is the mating connector for 5-1775443-3?
As a male pin header, it mates with a female receptacle from the same High Performance Interconnect (HPI) series with 1.50 mm pitch and 3 circuits. Confirm the mating half part number against your harness assembly.
Is 5-1775443-3 RoHS compliant?
Yes, it is ROHS3 Compliant.
What is the pitch of 5-1775443-3?
The mating pitch is 0.059" (1.50 mm).
