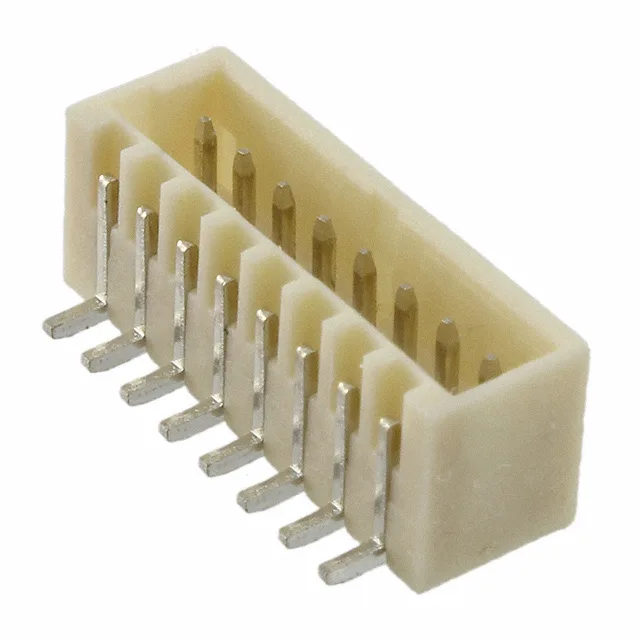

TE Connectivity AMP Connectors 5-1775443-8
MPN5-1775443-8
Active
$0.5598Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
