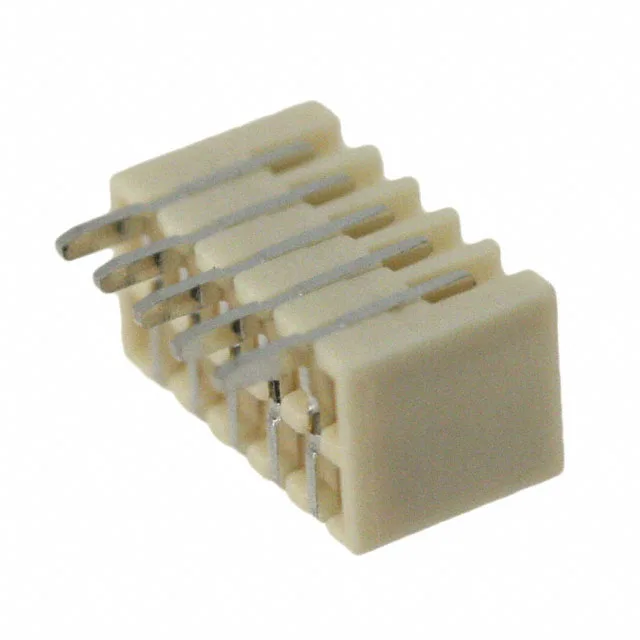

TE Connectivity AMP Connectors, High Performance Interconnect (HPI) series, 5-position single-row shrouded header, 1.50 mm pitch, surface-mount right-angle, tin-plated male pins, rated 3 A per contact at 250 VAC.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.175\" (4.45mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.059\" (1.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.106\" (2.70mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 0.175" (4.45 mm) insulation height leaves room for the wire-to-board plug above the header body.
The closest functional peer is TE 1376366-8: an 8-position, 2.20 mm pitch through-hole right-angle header rated 5 A. The 5-1775444-5 is a 5-position, 1.50 mm pitch SMT part — the different pitch and mounting style mean a board spin is required to swap between them.
Yes, it is listed as ROHS3 compliant.
