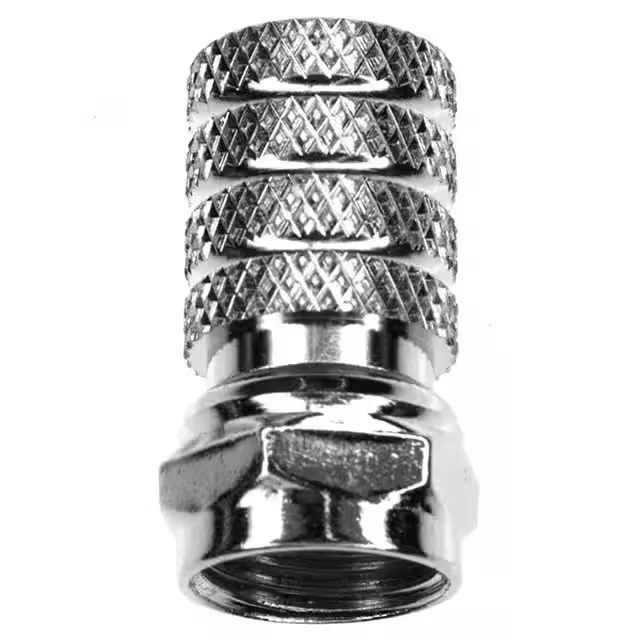

TE Connectivity Greenpar ZDC series F-type plug, male pin, 75 Ohm impedance, 1 GHz frequency max, RG-6 cable group, threaded fastening, twist-on shield termination, free hanging in-line mount.
| Parameter | Value |
|---|---|
| Series | ZDC, Greenpar |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Plug, Male Pin |
| Fastening type | Threaded |
| Voltage rating | 500 V |
| Frequency - max | 1 GHz |
| Cable group | RG-6 |
| Operating temperature | -65°C~85°C |
| Body material | Brass |
| Housing color | Silver |
| Package | Tray |
| Impedance | 75Ohm |
| Body finish | Nickel |
| Number of ports | 1 |
| Shield termination | Twist On |
The TE Connectivity Greenpar ZDC 5-1814822-3 is an F-type plug, male pin, designed for 75 Ohm impedance systems. The threaded coupling nut secures the mate against vibration on the back of a satellite receiver or cable modem.
No direct replacement is listed on the lifecycle record.
The 1 GHz frequency ceiling covers the cable TV spectrum up to 1 GHz.
There is no direct replacement listed.
5-1814822-3 is a 75 Ohm F-type plug, matched to the standard impedance for video and broadband coax systems.
5-1814822-3 is designed for RG-6 cable, the most common drop cable for satellite and cable TV installations.
