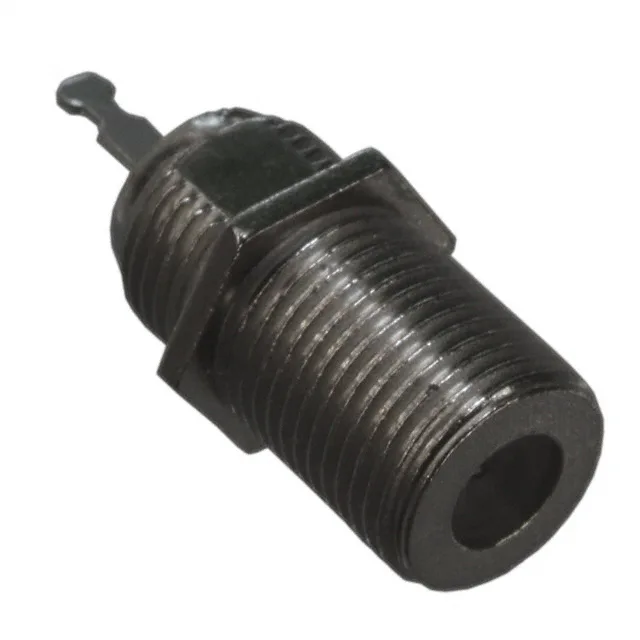

5-1814823-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 5-1814823-1 F Type Jack, 75 Ohm, Obsolete

MPN5-1814823-1
Obsolete

TE Connectivity ZDC/Greenpar F Type jack, female socket, 75 Ohm, 1 GHz, panel mount bulkhead, solder tab termination, nickel body, tin-plated center contact.

$0.6200Ref. price · indicative, final on quote
5-1814823-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1814823-1 Technical Specifications
ParameterValue
SeriesZDC, Greenpar
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max1 GHz
Mounting featureBulkhead - Rear Side Nut
Operating temperature-65°C ~ 85°C
Body materialZinc Alloy
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialPhosphor Bronze
PackageBulk
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationSolder
Contact terminationSolder Tab
Center contact platingTin

Product details

75 Ohm F Type Bulkhead Jack for Legacy Video and CATV

The 5-1814823-1: Rated to 1 GHz maximum frequency, this jack handles standard-definition video and DOCSIS-era data signals, though it sits below the bandwidth needed for modern 3 GHz satellite or 6 GHz DOCSIS 4.0 plant.

Termination is via a solder tab on the center contact and a solder lug for the shield — a field-solder connection rather than a crimp or compression fitting.

The ZDC/Greenpar series is a legacy family; TE's current RF coax offerings typically carry the same F Type interface and 75 Ohm spec, but the exact footprint and panel cutout dimensions must be verified against the original product drawing.

Frequently asked questions

What are the specifications of 5-1814823-1?

The 5-1814823-1 is a 75 Ohm F Type jack, female socket rated to 1 GHz maximum frequency and 500 V. It mounts in a panel bulkhead with a rear side nut, terminates via solder tab, and operates from -65°C to 85°C. The body is nickel-plated zinc alloy with a tin-plated phosphor bronze center contact.
