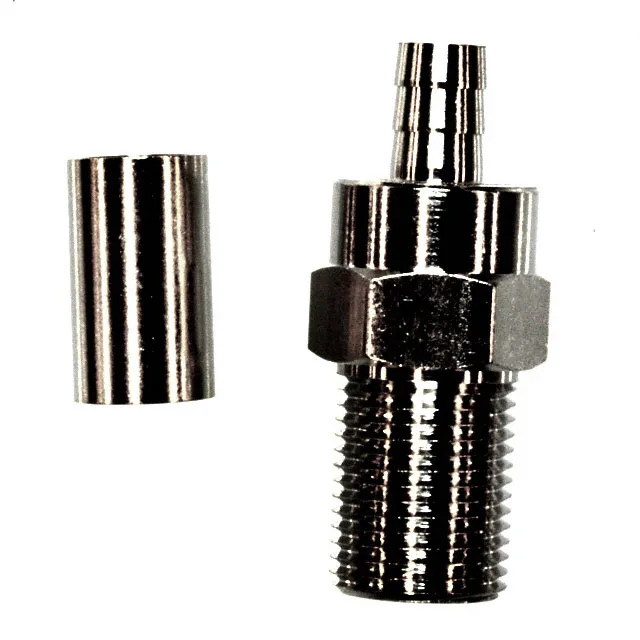

5-1814826-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5-1814826-1 F Type Jack, 75 Ohm, 2 GHz

MPN5-1814826-1
Obsolete

TE Connectivity F Type jack, female socket, 75 Ohm, panel mount bulkhead, crimp shield termination, 500 V, 2 GHz, 1 port, silver brass body, tin center contact.

$2.7900Ref. price · indicative, final on quote
5-1814826-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

5-1814826-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-59B, 62A, 140, 210
Operating temperature-65°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBrass
PackageBulk
Impedance75 Ohms
Body finishNickel
Number of ports1
Shield terminationCrimp
Center contact platingTin

Product details

F Type Jack for 75 Ohm Video/Broadband Systems

The 5-1814826-1: It accepts RG-59B, 62A, 140, and 210 cable groups, which covers the common 75 Ohm coax types for residential and commercial broadband drops.

Panel Mount with Bulkhead Front-Side Nut

The threaded fastening type keeps the mating plug from backing off under vibration, though in a fixed installation the nut torque is the only thing holding the pair together.

2 GHz Bandwidth and 500 V Rating

Rated to 2 GHz maximum frequency. The center contact is tin-plated brass.

The 5-1814826-1 is listed as Obsolete. If the design can tolerate a parametric alternative, a current-production F Type jack from the same cable group and impedance range would be the practical replacement, but no direct cross-reference is documented here.

Frequently asked questions

Is 5-1814826-1 obsolete?

Yes, the TE Connectivity 5-1814826-1 is listed as Obsolete.
