10-Position Panel-Mount Housing for Power Triple Lock Systems

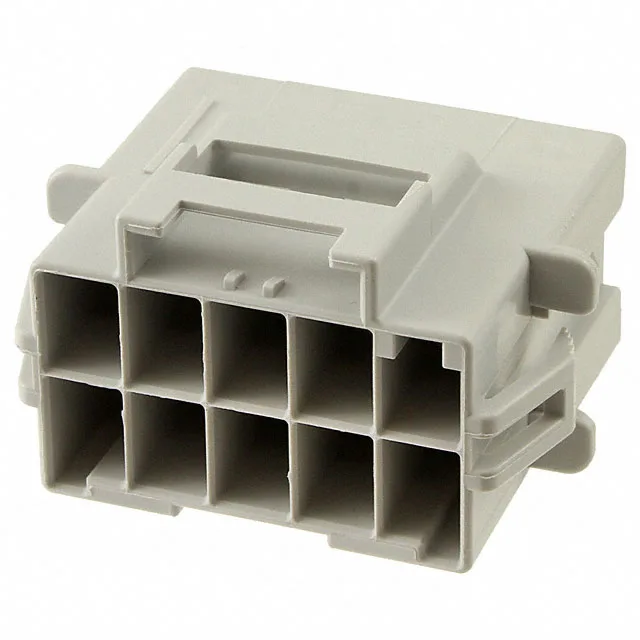

The TE Connectivity 5-1971775-5 is a 10-circuit receptacle housing from the Power Triple Lock, High Temp series.
Pitch and Panel Fit
At a 6.00mm pitch with 0.319" (8.10mm) row spacing, this dual-row housing matches the Power Triple Lock header footprint. The panel mount, snap-in style means no hardware is needed to secure it through the cutout — just push it in until the latches engage. The row spacing keeps the two rows of terminals separated enough for good creepage, consistent with the series' power-level current ratings.
This housing ships without contacts — order the Power Triple Lock tab terminals separately. The crimp termination requires a compatible hand or auto-feed tool; the tab-style contact mates with the female socket in the header half.
