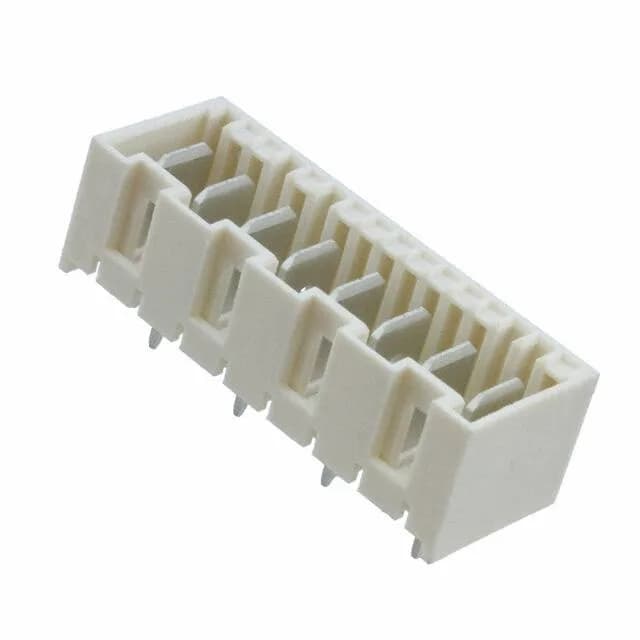

TE Connectivity AMP Connectors header, order code 5-1971845-8, 8 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
TE 5-1971845-8 Header, 8-Pos 5.00mm, Shrouded, Glow Wire
MPN5-1971845-8
Active
TE Connectivity AMP Connectors header, order code 5-1971845-8, 8 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination, shrouded - 4 wall.
$1.5619Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C~120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
