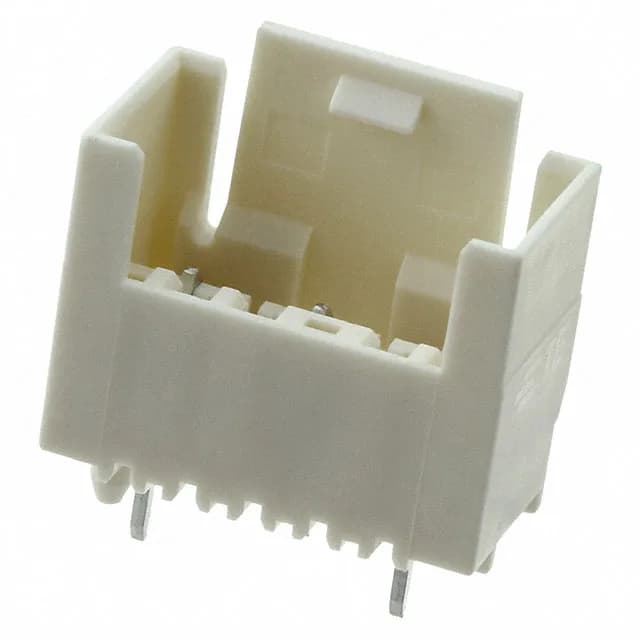

TE Connectivity AMP Connectors header, order code 5-1971921-5, 5 positions (3 loaded), single row, 0.098" (2.50mm) pitch, tin-plated mating contacts, through hole, solder termination, shrouded - 4 wall, locking ramp.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
The 5-1971921-5 is a shrouded 4-wall header from TE Connectivity AMP Connectors, single-row, 5 positions with 3 loaded, pitched at 0.098" (2.50mm).
No direct replacement or successor is listed. Stock is sourced through independent surplus channels; quantities and lead time are confirmed at RFQ.
No pin-compatible direct replacement is listed from the manufacturer. Any alternative would require a different pitch or pinout — a board layout change.
