TE Connectivity AMP Connectors 5-2232264-6 — Connector Housings

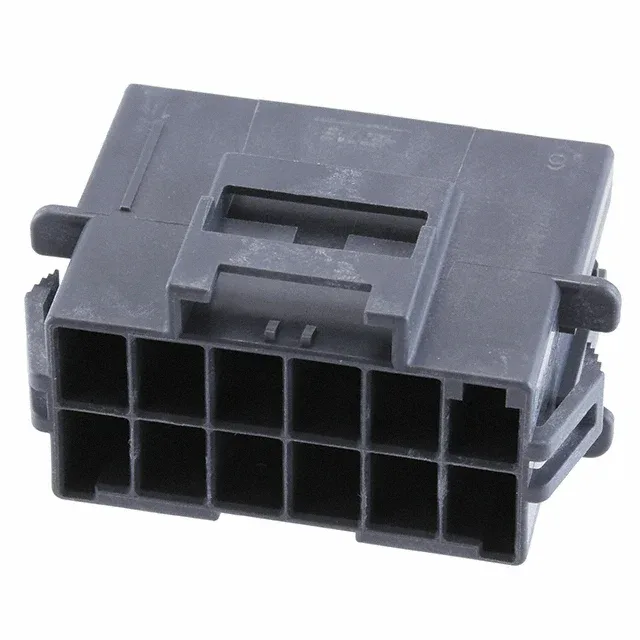

TE 5-2232264-6 Power Triple Lock Receptacle, 12 Pos, 6.00mm

MPN5-2232264-6
Active

TE Connectivity Power Triple Lock, Glow Wire receptacle housing, 12 positions, 2 rows, 6.00 mm pitch, 0.319" row spacing, panel mount snap-in, latch lock, crimp termination, gray, -55°C to 105°C.

$1.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPower Triple Lock, Glow Wire
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-2232264-6 specifications
ParameterValue
SeriesPower Triple Lock, Glow Wire
TypeTab
MountingPanel Mount, Snap-In
Connector typeReceptacle
Fastening typeLatch Lock
Operating temperature-55°C ~ 105°C
ColorGray
Insulation materialPolyamide (PA), Nylon, Glass Filled
NoteContacts Not Included
Pitch0.236\" (6.00mm)
PackageBulk
FeaturesGlow Wire Compliant
Row spacing0.319\" (8.10mm)
Rows2
Contact terminationCrimp
Positions12

Product details

12-Position Power Triple Lock Receptacle Housing — Panel-Mount Snap-In

It uses a 6.00 mm pitch and 0.319" row spacing, giving it the clearance for power terminals in a compact panel-mount footprint. This is the 12-circuit member of the family, meaning it matches a 12-position BOM line where the mating plug carries the same circuit count.

Glow Wire Compliance and Material Choice

This housing is Glow Wire Compliant per IEC 60695-2-11, which is a hard requirement for appliances and lighting fixtures sold into European markets. The gray color is standard for the glow-wire variant; natural (uncolored) versions of the same series exist but lack the glow-wire certification.

Frequently asked questions

Does 5-2232264-6 include contacts?

No — the housing ships without contacts. You order the matching Power Triple Lock crimp terminals separately.

Is 5-2232264-6 glow wire compliant?

Yes, it carries Glow Wire Compliance, making it suitable for appliance and lighting applications requiring IEC 60695-2-11.

What is the pitch and row spacing for 5-2232264-6?

The pitch is 6.00 mm and the row spacing is 0.319" (8.10 mm).
