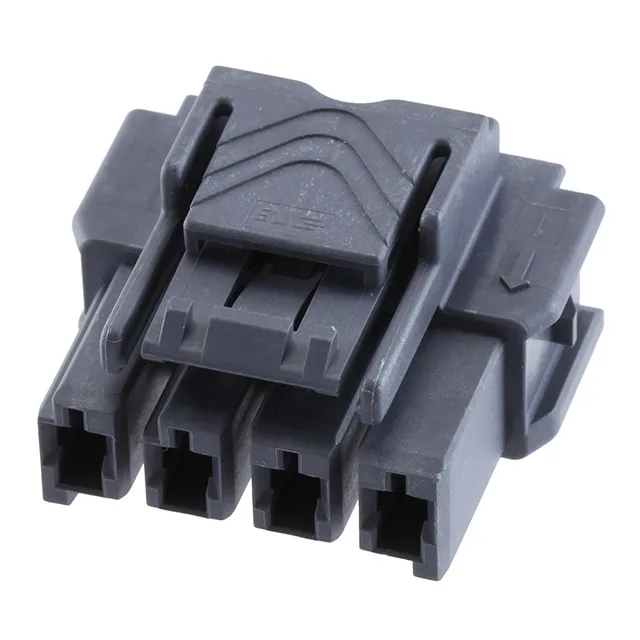

TE Connectivity Power Triple Lock, Glow Wire plug housing, 4 positions, 1 row, 6.00mm pitch, free hanging, latch lock, gray, -55°C to 105°C, RoHS compliant, contacts not included.
| Parameter | Value |
|---|---|
| Series | Power Triple Lock, Glow Wire |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Lock |
| Operating temperature | -55°C ~ 105°C |
| Color | Gray |
| Insulation material | Polyamide (PA6), Nylon 6 |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Features | Glow Wire Compliant |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 4 |
The 5-2232265-4: It's a free-hanging (in-line) female blade socket housing built for crimp termination — you supply the contacts separately.
Glow Wire Compliant means the PA6 housing passes the glow-wire test (IEC 60695-2-11) — relevant for appliances, HVAC, and lighting where a hot component fault must not sustain flame. RoHS Compliant per the listing.
No — the listing explicitly notes Contacts Not Included. You need to order the matching female blade socket crimp terminals separately for this Power Triple Lock housing.
It is a plug housing that accepts female blade socket contacts — the mating half is the corresponding Power Triple Lock receptacle header.
Yes, it is listed as RoHS Compliant.
Sourced to order against your RFQ — availability and pricing confirmed at quote time.
