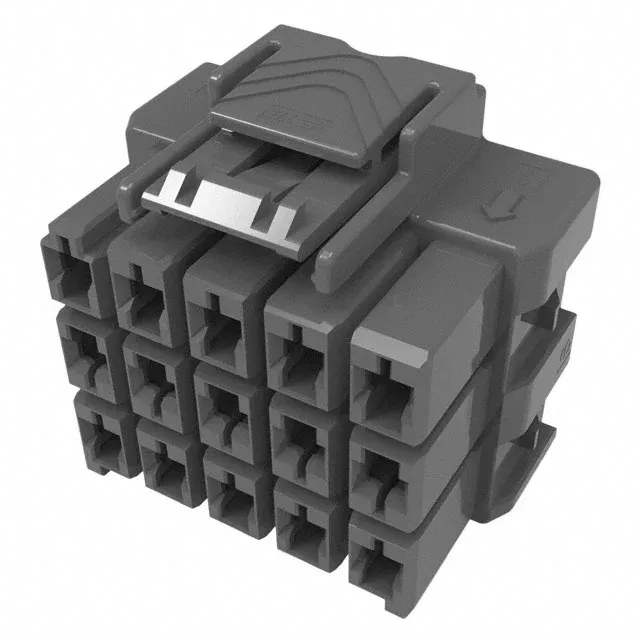

TE Connectivity Power Triple Lock, Plug Housing, 15 Position, 6.00mm Pitch, 3 Row, Free Hanging, Crimp, Gray, Latch Holder.
| Parameter | Value |
|---|---|
| Series | Power Triple Lock |
| Type | Female Blade Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -55°C ~ 105°C |
| Color | Gray |
| Insulation material | Polyamide (PA6), Nylon 6 |
| Note | Contacts Not Included |
| Pitch | 0.236\" (6.00mm) |
| Package | Bulk |
| Row spacing | 0.319\" (8.10mm) |
| Rows | 3 |
| Contact termination | Crimp |
| Positions | 15 |
It carries a 6.00 mm pitch and arranges its cavities in three rows, with a row spacing of 8.10 mm.
This is the plug half — it mates with a Power Triple Lock receptacle housing (same series, same pitch). The female blade socket contacts are not included in this housing; you order them separately as a line item. The crimp termination lets you use standard power crimp tooling for 14-18 AWG wire, depending on the contact part number selected.
The 5-2232357-7 accepts female blade socket contacts that are crimp-terminated. The contacts are not included with the housing and must be ordered separately. Use TE Power Triple Lock crimp terminals rated for the wire gauge your application requires — typically 14-18 AWG for this series.
Submit a request for quote to confirm current pricing and availability. No stock-holding claim is made; each order is confirmed at quote time.
