TE Connectivity AMP Connectors 5-2271143-2
MPN5-2271143-2
Active

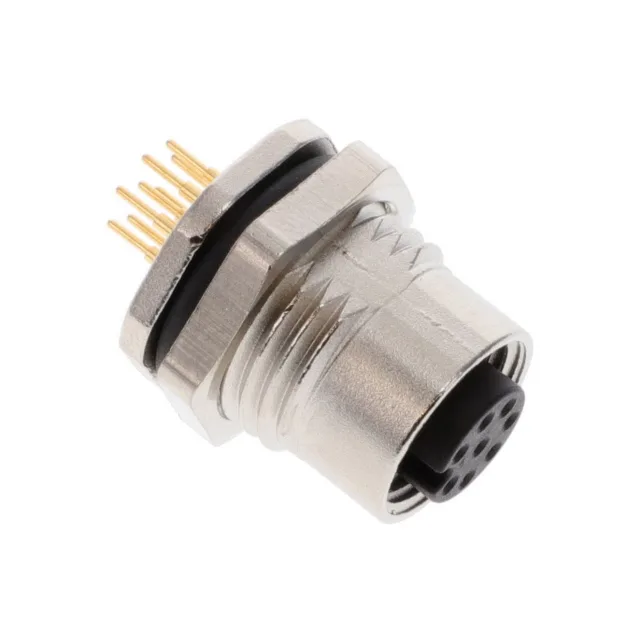

M12 FEMALE PNL.A CODE.8P.PCB TYP
$39.78Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesM12
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | M12 |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 60VAC/DC |
| Current rating | 2A |
| IP rating | IP68 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Bronze |
| Primary material | Metal |
| Package | Bag |
| Shielding | Unshielded |
| Orientation | A |
| Termination | Solder |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 19.7µin (0.50µm) |
