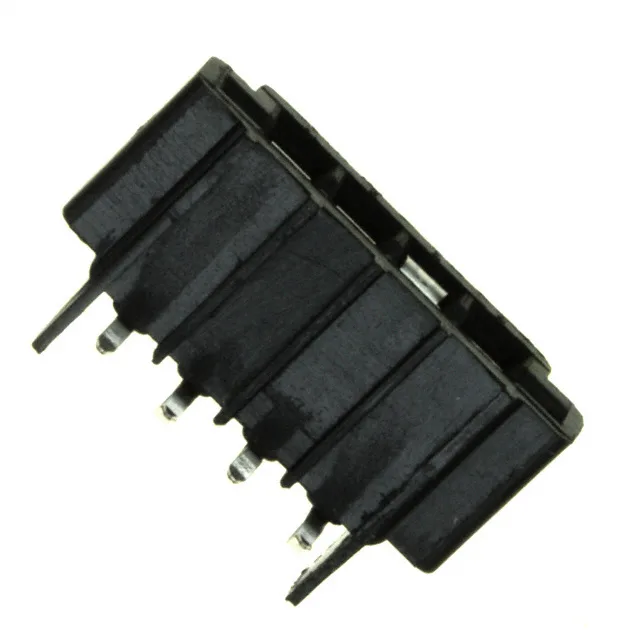

TE Connectivity AMP Connectors 5-487508-3
MPN5-487508-3
Active
$0.3501Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Triomate |
| Mounting | Through Hole, Right Angle |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Top |
| Voltage rating | 250V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester Thermoplastic, Glass Filled |
| Height above board | 0.190\" (4.83mm) |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Termination | Kinked Pin |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.13mm ~ 0.38mm |
| Positions | 4 |
| Contact finish thickness | 196.9µin (5.00µm) |
