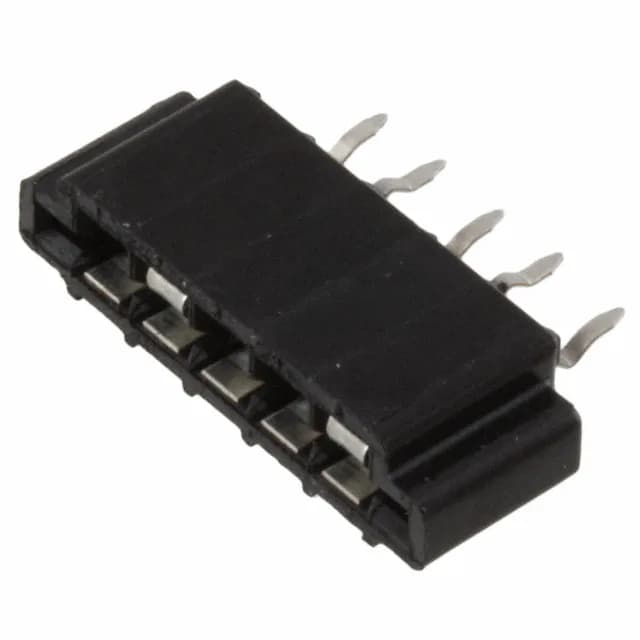

TE Connectivity AMP Connectors Triomate FFC, FPC connector, order code 5-487509-4, 5 positions, 0.100" (2.54mm) pitch, 1 A, 250 V, tin-plated contacts, through-hole, kinked pin termination.
| Parameter | Value |
|---|---|
| Series | Triomate |
| Mounting | Through Hole |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 250V |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Housing color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Polyester Thermoplastic, Glass Filled |
| Height above board | 0.273\" (6.93mm) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Termination | Kinked Pin |
| Mating cycles | 25 |
| Contact finish | Tin |
| FFC, FCB thickness | 0.13mm ~ 0.38mm |
| Positions | 5 |
| Contact finish thickness | 200.0µin (5.08µm) |
The 5-487509-4 is the 5-circuit member of TE's Triomate FFC/FPC connector line, a vertical through-hole part with kinked pin termination. Rated 1 A per contact at 250 V, it accepts FFC thickness from 0.13 mm to 0.38 mm and stands 0.273" (6.93 mm) above the board.
The 0.100" (2.54mm) pitch matches standard 0.100" grid layouts — the 5-position body routes signal traces through a single row without needing a tight fan-out.
The 5-487509-4 is orderable through TE Connectivity AMP Connectors distribution. Pricing is confirmed at RFQ against the BOM quantity.
No pin-compatible alternative is recorded for the 5-487509-4 within the Triomate series. The 5-position count and 0.100" (2.54mm) pitch define the footprint; a different position count requires a different board layout.
