TE Connectivity AMP Connectors 5-5179010-2

TE Free Height (FH) 5-5179010-2, 60 Pos, 0.80mm Pitch

MPN 5-5179010-2
Active

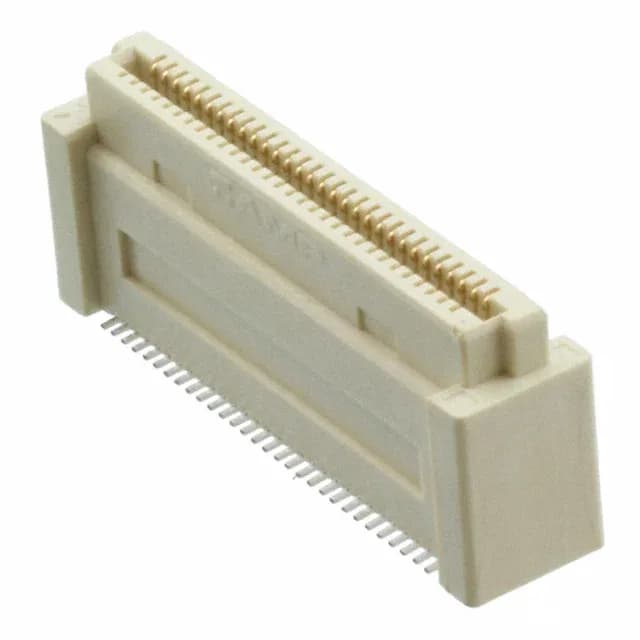

TE Connectivity Free Height (FH) receptacle, 60 positions, 0.80mm pitch, dual-row, SMT, gold contacts, 13mm mated stacking height, board guide.

$5.3600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesFree Height (FH)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-5179010-2 specifications
ParameterValue
SeriesFree Height (FH)
MountingSurface Mount
Connector typeReceptacle, Outer Shroud Contacts
Height above board0.463\" (11.75mm)
Mated stacking heights13mm
Pitch0.031\" (0.80mm)
PackageTube
FeaturesBoard Guide
Contact finishGold
Rows2
Positions60
Contact finish thickness8.00µin (0.203µm)

Product details

Board-to-Board Mezzanine Interconnect, 60 Circuits at 0.80 mm Pitch

The 13 mm Stack Height and Board Guide in Practice

The 0.463" (11.75 mm) height above board means the receptacle body sits nearly flush with the top of the 13 mm stack — the mating header takes the remaining 1.25 mm. That tight z-budget is typical for mezzanine card spacing where every tenth-millimetre matters. The board guide feature is not cosmetic: it captures the mating header's alignment posts before the contacts engage, preventing bent pins in blind assembly or vibration. For a 60-position dual-row connector at 0.80 mm pitch, that alignment is what keeps the outer rows from skiving during mate.

Surface Mount Termination and Gold Plating

The SMT termination suits reflow assembly, and the 8.00 µ" gold on the contact interface is a standard mezzanine-grade plating — enough for the moderate mating cycle counts typical of card-edge and module interconnects. The gold thickness is specified on the mating surface only; the solder tail is likely tin-plated for reliable wetting. Tube packaging keeps the parts aligned for pick-and-place without tape peel issues.
