Right-angle FFC/FPC termination with kinked pins

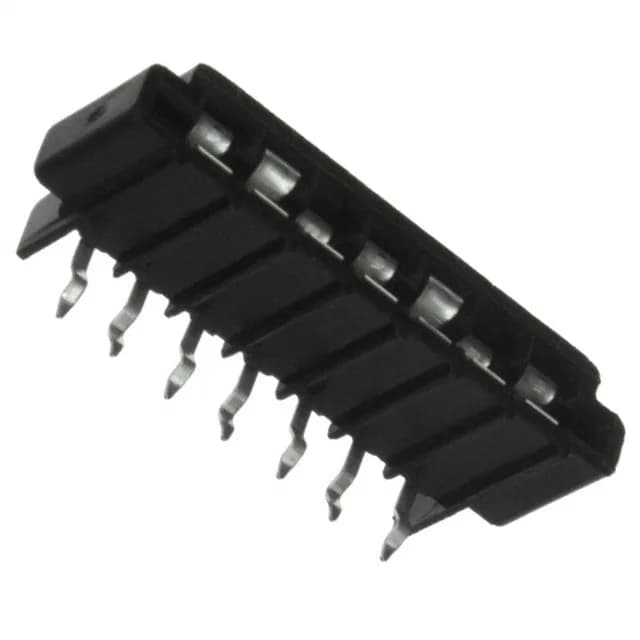

The 5-520314-7 is the 7-position member of TE's Triomate FFC/FPC connector series, terminated with kinked pins for through-hole right-angle mounting. Tin-plated phosphor bronze contacts rated 1 A at 250 V accept FFC thickness from 0.13 mm to 0.38 mm; the top-contact style mates with the cable's exposed pads on the upper side.
Pitch and board footprint fit
The 0.100" (2.54mm) pitch matches legacy ribbon-cable and FFC layouts; the through-hole right-angle orientation places the connector at the board edge with a 0.190" (4.83mm) height above board.
