TE Connectivity AMP Connectors AMPMODU Mod II, 30-position dual-row receptacle, 0.100" (2.54mm) pitch, gold mating finish, right-angle through-hole solder termination, black housing, tube package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 30 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

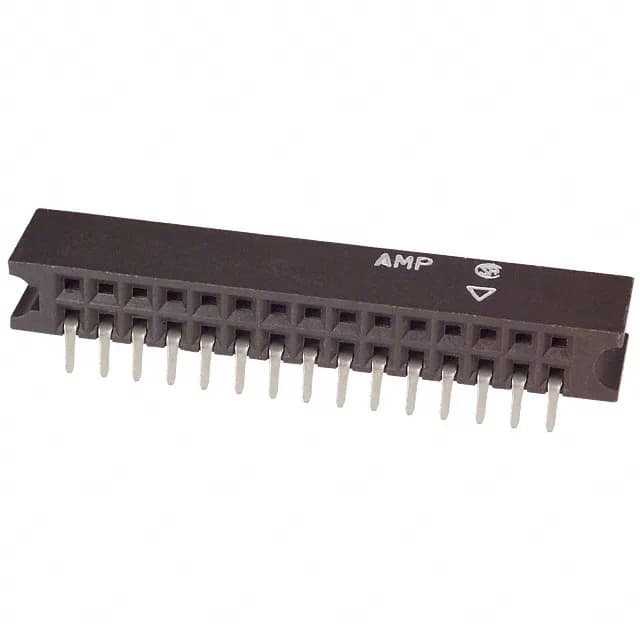

The 5-532955-5 is a board-to-board female socket header from TE's AMPMODU Mod II series, carrying 30 positions in two rows at 0.100" pitch — the standard footprint for legacy and current PCB designs.
Guide pin ears on the housing help align the receptacle during mating, reducing the risk of pin stubbing on the header.
It is a board-to-board female socket header used to connect two PCBs in a parallel or right-angle stack. The 30-position dual-row layout at 0.100" pitch mates with standard AMPMODU Mod II pin headers.
All positions are loaded.
Yes, it is ROHS3 compliant.
