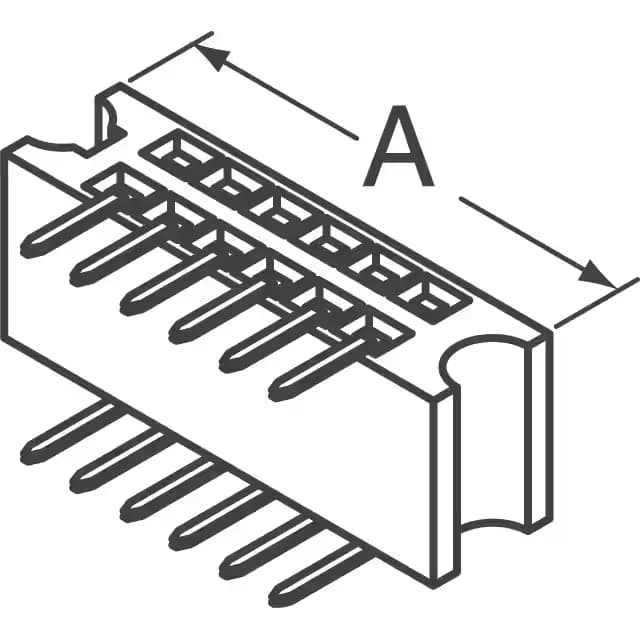

TE Connectivity AMPMODU Mod II, 5-532955-7, 40-position dual-row right-angle through-hole receptacle, 0.100" (2.54 mm) pitch, 15 µinch gold mating finish, tin post, guide pin ears, RoHS, active.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Guide pin ears on the housing provide mechanical alignment during mating, reducing the risk of pin stubbing in blind-mate or high-density board-to-board applications.
Termination is solder via through-hole posts measuring 0.115" (2.92 mm) in length, with a tin finish (50 µinch) on the post for reliable soldering into plated through-holes.
Yes, the housing includes guide pin ears for mechanical alignment during mating, reducing the risk of pin damage in blind-mate or high-pin-count applications.
The pitch is 0.100" (2.54 mm) with 40 positions in a dual-row configuration. Row spacing is also 0.100" (2.54 mm).
