TE Connectivity AMP Connectors 5-532956-1 — Female Socket Headers

5-532956-1 TE Connectivity AMPMODU Mod II 12-Position

MPN5-532956-1
Active

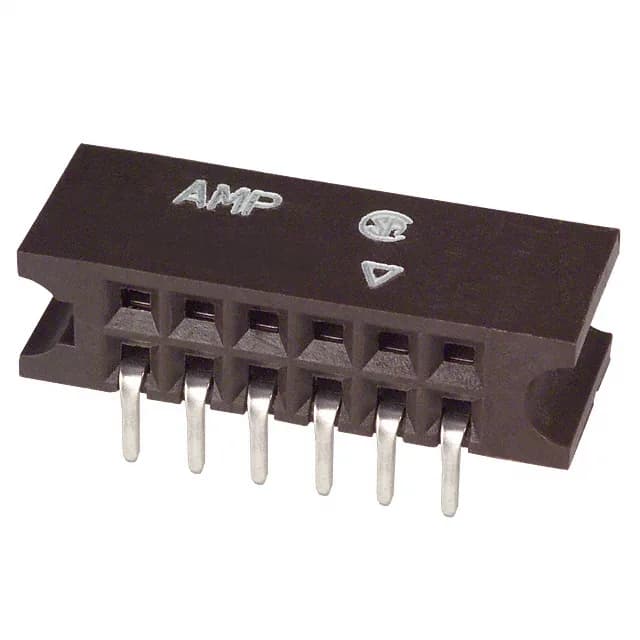

TE Connectivity AMP Connectors AMPMODU Mod II, 12-position dual-row receptacle, 0.100" (2.54 mm) pitch, gold-plated mating contacts, right-angle through-hole solder termination, black housing, tube package.

$4.3000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-532956-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-532956-1 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.238\" (6.05mm)
StyleBoard to Board
PackageTube
FeaturesGuide Pin Ears
TerminationSolder

All specifications

5-532956-1 additional specifications
ParameterValue
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

12-position board-to-board receptacle with 30 µinch gold

The 5-532956-1: The 30.0 µinch (0.76 µm) gold over nickel on the mating face supports 500+ mating cycles, making it a fit for test fixtures, programming jigs, or any board that sees repeated connect-disconnect in a lab or field-service role.

The receptacle mates with any AMPMODU Mod II 0.100" pitch dual-row header (male pin strip) of the same 12-position count. The guide pin ears on the housing align the pair during blind mating — useful when the connector is not visible during assembly. The 0.115" (2.92 mm) post length suits standard 0.062" (1.6 mm) PCBs; confirm the solder tail length against your board thickness before committing the BOM.

Frequently asked questions

Where can I buy 5-532956-1 and how is it quoted?

5-532956-1 is sourced through independent distribution channels. No stock-holding claim is made — each RFQ is sourced fresh.

What is the mating connector for 5-532956-1?

It mates with any AMPMODU Mod II 0.100" pitch dual-row male header (pin strip) of 12 positions. The guide pin ears on the receptacle align with corresponding holes on the header.

Is 5-532956-1 RoHS compliant?

Yes, it is ROHS3 compliant — no restricted substances above the threshold limits.
