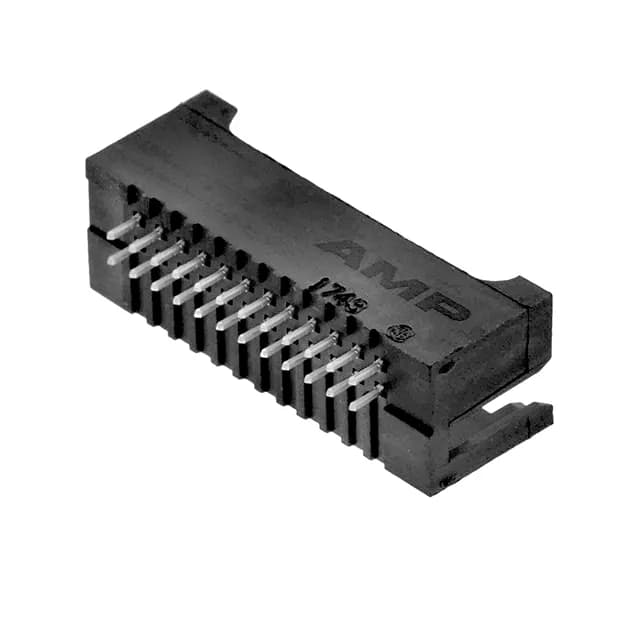

24-position shrouded header in the AMPMODU Mod II series
The 5-533023-8 is the 24-circuit member of TE Connectivity's AMPMODU Mod II header line, a shrouded - 4 wall board-to-board or cable header with male square pins. It carries gold-plated mating contacts rated 30.0µin (0.76µm) thickness, tin-plated posts, and a UL94 V-0 glass-filled nylon housing in black.
Through-hole footprint and board-fit dimensions
Dual-row layout at 0.100" (2.54mm) pitch with 0.100" (2.54mm) row spacing; the post length is 0.120" (3.05mm) and the insulation height above the board is 0.553" (14.05mm). A guide pin feature aids alignment during mating; the 4-wall shroud protects the pins from damage and mis-mating.
