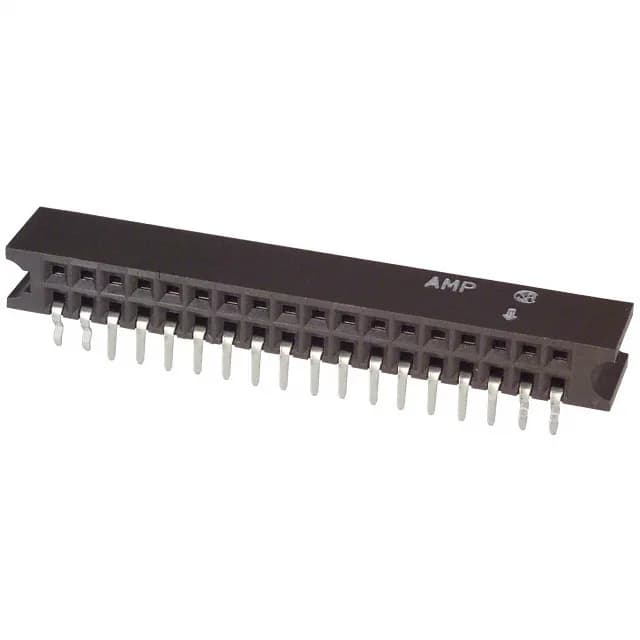

TE Connectivity AMP Connectors AMPMODU Mod II, 36-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole right-angle, 30 µinch gold mating finish, kinked pin solder termination, black housing with guide pin ears.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.238\" (6.05mm) |
| Style | Board to Board |
| Package | Tube |
| Features | Guide Pin Ears |
| Termination | Kinked Pin, Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.115\" (2.92mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 50.0µin (1.27µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-534204-3: The tin-plated solder tails (50 µinch) are compatible with standard wave-solder profiles. Guide pin ears on the housing help align the receptacle during blind mating, which is useful in multi-connector backplane assemblies where the operator cannot see the contact engagement.
The mating header must have 36 positions loaded and a square pin profile. Guide pin ears on the receptacle align with corresponding holes on the header.
RoHS compliance is standard for TE Connectivity AMP Connectors parts in this series. Confirm with the RoHS certificate available through the product documentation.
