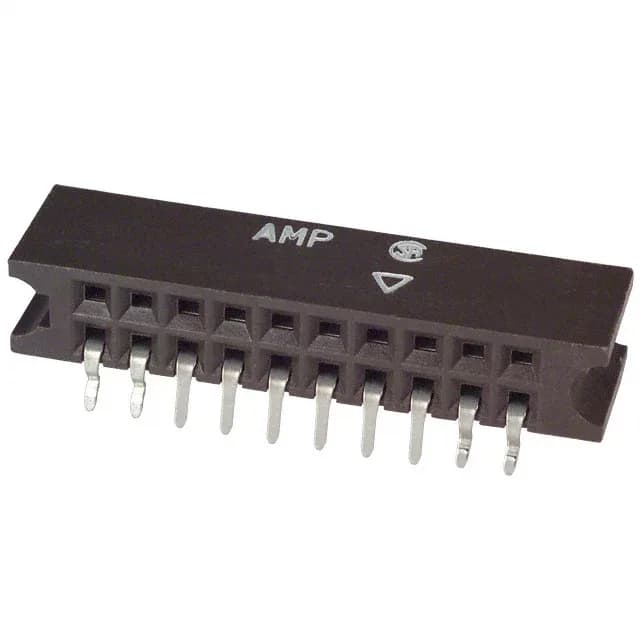

TE Connectivity AMP Connectors 5-534204-9 — Female Socket Headers

5-534204-9 TE Connectivity AMPMODU Mod II 20 Position

MPN5-534204-9
Active

TE Connectivity AMP Connectors AMPMODU Mod II, 5-534204-9, Female Socket Header, Board to Board, 20 positions, 0.100" (2.54mm) pitch, dual-row, right-angle, through hole, gold mating finish, kinked pin solder termination, tube package.

$6.7900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-534204-9 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-534204-9 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeFemale Socket
MountingThrough Hole, Right Angle
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.238\" (6.05mm)
StyleBoard to Board
PackageTube
FeaturesGuide Pin Ears
TerminationKinked Pin, Solder

All specifications

5-534204-9 additional specifications
ParameterValue
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 5-534204-9: 20 positions arranged in two rows of 10, with all positions loaded.

Supplied in tube packaging, ROHS3 compliant. The base product number is 534204, which covers the full family of 0.100" pitch AMPMODU Mod II receptacles.

The closest functional sibling is 5-534204-4, which shares the same pitch, row spacing, mounting style, and plating but carries 30 positions instead of 20. If your BOM calls for 30 positions, 5-534204-4 is a direct swap in footprint and mating interface. Other siblings in the same series — 5-532956-1 (12 positions) and 5-532956-7 (40 positions) — share identical pitch, row spacing, and gold plating, differing only in position count. All are active and use the same kinked-pin, right-angle through-hole termination.

Frequently asked questions

What is the pin pitch of 5-534204-9?

The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm) — a standard 0.1" grid that mates with any compatible 0.1" square pin header.

What is the alternative or equivalent for 5-534204-9?

Within the same AMPMODU Mod II series, 5-534204-4 (30 positions) is the closest functional equivalent, sharing the same pitch, row spacing, mounting, and plating. For a different position count, consider 5-532956-1 (12 positions) or 5-532956-7 (40 positions).

Is 5-534204-9 compatible with standard 0.1" headers?

Yes.
