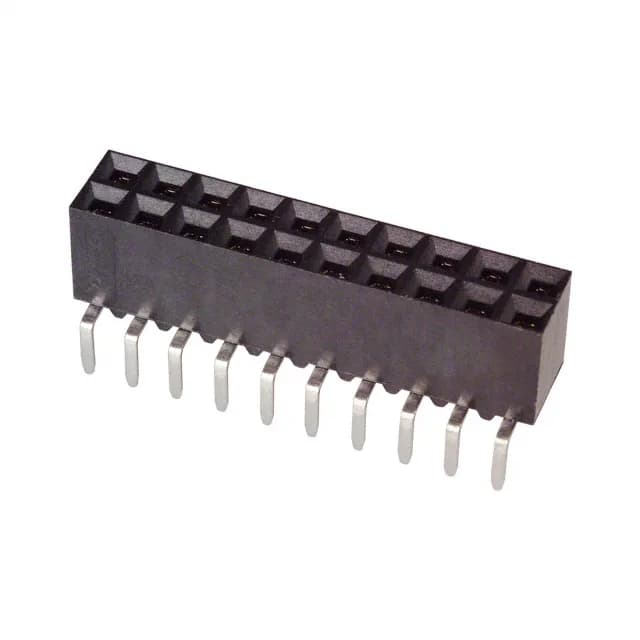

TE Connectivity AMP Connectors AMPMODU Mod IV receptacle, 20 positions, 0.100" (2.54 mm) pitch, dual-row, through-hole, 30 µinch gold mating, push-pull fastening, black polyester housing, tube package.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The post finish is 150 µinch tin, which solders cleanly into plated through-holes.
This receptacle mates with any 20-position, 0.100" pitch, dual-row AMPMODU Mod IV header — either straight or right-angle, depending on your board-stacking height.
This part is sourced through independent distribution against your BOM quantity.
Yes. This receptacle is part of the AMPMODU Mod IV series and mates with any 20-position, 0.100" pitch, dual-row header in the same series. The push-pull fastening means no latch lock — retention relies on pin friction.
