The 5-534267-7: The 0.100" row spacing matches the industry-standard 0.100" header grid — any AMPMODU Mod IV or compatible 0.025" square-post header with 40 positions in two rows will mate. The bottom or top entry designation means the receptacle can be loaded from either side of the PCB, depending on the board stack-up. Insulation height of 0.265" (6.73 mm) sets the mated stack height — the header post length must be selected so the receptacle fully seats without bottoming out.
5-534267-7 TE Connectivity AMPMODU Mod IV 40-Position
MPN5-534267-7
Active

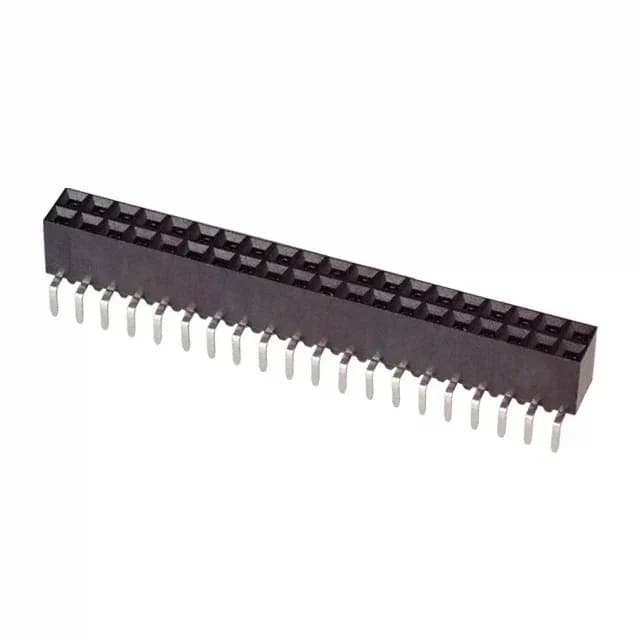

TE Connectivity AMP Connectors AMPMODU Mod IV, 40-position dual-row receptacle, 0.100" (2.54 mm) pitch, through-hole solder termination, 30 µinch gold mating finish, black polyester housing.
$8.4600Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod IV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Style | Board to Board |
| Package | Tube |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Does 5-534267-7 comply with RoHS?
Yes, 5-534267-7 is RoHS compliant.
What is the pinout for 5-534267-7?
The pinout follows the standard dual-row 0.100" grid: 40 positions loaded all, two rows of 20 contacts each. The receptacle is keyed by the housing geometry — no polarisation feature beyond the push-pull latch.
