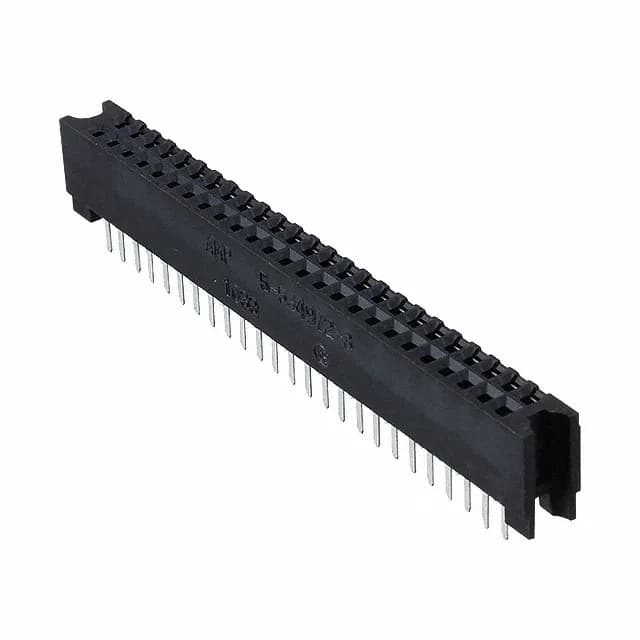

TE Connectivity AMP Connectors 5-534972-3 — Female Socket Headers

5-534972-3 TE Connectivity AMPMODU Mod II 50-Position

MPN5-534972-3
Active

TE Connectivity AMPMODU Mod II, 50-position dual-row female socket header, 0.100" (2.54 mm) square pitch, through-hole solder termination, 30 µinch gold mating finish, board-to-board style, active production.

$15.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-534972-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-534972-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeFemale Socket
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.410\" (10.41mm)
Insulation materialPolyphenylene Sulfide (PPS)
StyleBoard to Board
PackageTube
FeaturesGuide Pin Ears

All specifications

5-534972-3 additional specifications
ParameterValue
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions50
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.115\" (2.92mm)
Contact finish - matingGold
Contact finish thickness - post50.0µin (1.27µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

50-position dual-row board-to-board receptacle

Guide pin ears align the receptacle to the header during blind mating, which matters when the board stack has tight z-height clearance and you cannot see the pin tips engage.

ROHS3 compliant — the tin post finish and PPS insulation meet current environmental directives.

For a 50-position build, 5-534972-3 carries 38 more circuits than the 12-position sibling, with gold-on-gold mating interface versus tin-on-tin — a meaningful difference if the application cycles the connector more than a few times.

Frequently asked questions

Does 5-534972-3 have guide pins?

Yes — the Features field lists Guide Pin Ears, which help align the receptacle to the mating header during assembly.

Is 5-534972-3 RoHS compliant?

Yes — it is ROHS3 compliant, meeting the latest RoHS directive requirements.
