Selection notes
The 5-534978-7: The four-wall shrouding protects the 40 square-pin male contacts during handling and mating, and the push-pull fastening keeps the mated pair engaged without hardware.

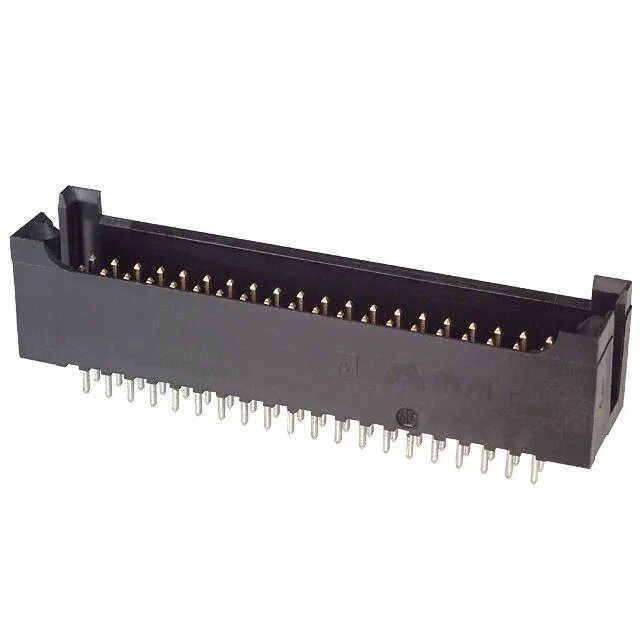

5-534978-7 TE AMPMODU Mod II Header 40 Pos 2.54mm
MPN5-534978-7
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 5-534978-7, 40 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, 250 VAC, gold-plated mating contacts, through-hole, solder termination.
$6.1273Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for the 5-534978-7?
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from TE Connectivity AMP Connectors upon request.
