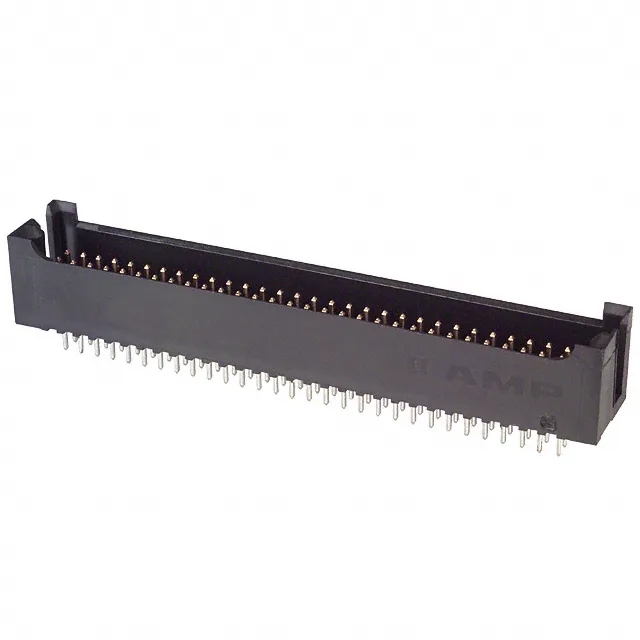

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 5-534978-9, 60 positions, dual row, 0.100" (2.54mm) pitch, 3A, 250VAC, gold-plated mating contacts, through hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 60 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-534978-9 is the 60-position, dual-row member of the TE AMPMODU Mod II shrouded header line. Rated 3A per contact at 250VAC, with gold-on-mating and tin-on-post finish.
Push-pull fastening — no latch or screw lock.
The housing material is rated UL94 V-0. RoHS and REACH compliance documentation is available from the manufacturer for this part.
