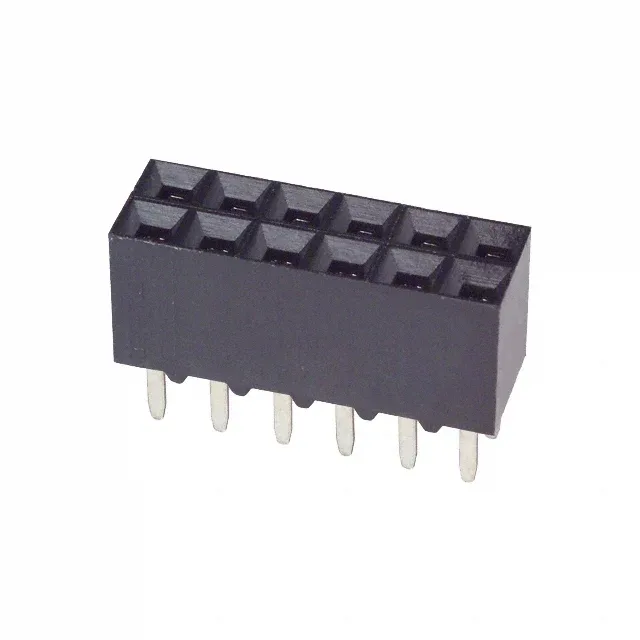

TE Connectivity AMP Connectors AMPMODU Mod IV, 12-position female socket receptacle, 0.100" (2.54mm) pitch, through-hole solder termination, gold mating finish, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
ROHS3 compliant and UL94 V-0 rated — the housing passes the flame test for equipment inside an enclosure.
Push-pull fastening with a square-contact female socket — mates with any 0.025" square pin header on the same 0.100" grid, including standard AMPMODU Mod IV and BergStik II headers.
The pitch is 0.100" (2.54mm) and the mounting is through-hole solder termination.
The 1376775-2 is a 5-position, 3 A, gold-plated receptacle on the same 0.100" pitch — a smaller-position alternate, not a direct 12-position replacement.
