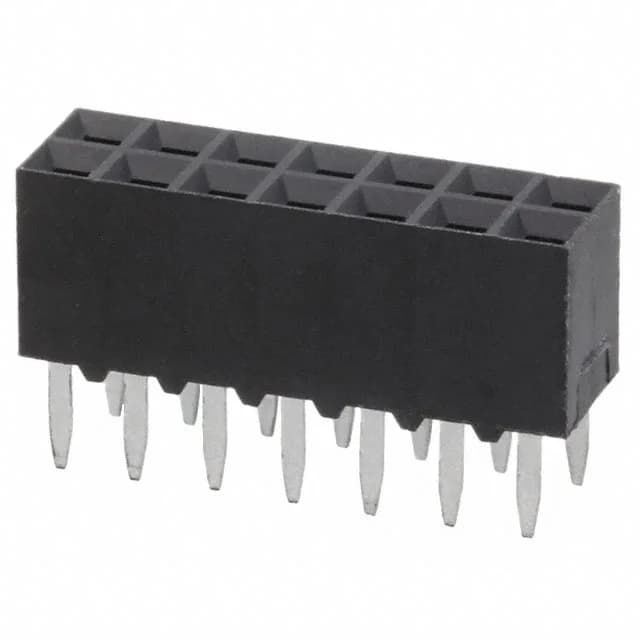

TE Connectivity AMPMODU Mod IV receptacle, order code 5-535542-7, 14 positions, dual row, 0.100" (2.54mm) pitch, 2 A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod IV |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Receptacle, Bottom or Top Entry |
| Fastening type | Push-Pull |
| Current rating | 2A |
| Operating temperature | -65°C ~ 125°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.265\" (6.73mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-535542-7 is a 14-position dual-row receptacle from the TE Connectivity AMPMODU Mod IV series, configured for board-to-board or cable mating with a push-pull fastening system. Rated 2 A per contact with gold-plated mating surfaces, the receptacle accepts square-pin headers and mounts through-hole with solder termination.
