What this Mag45 RJ45 jack does on the board

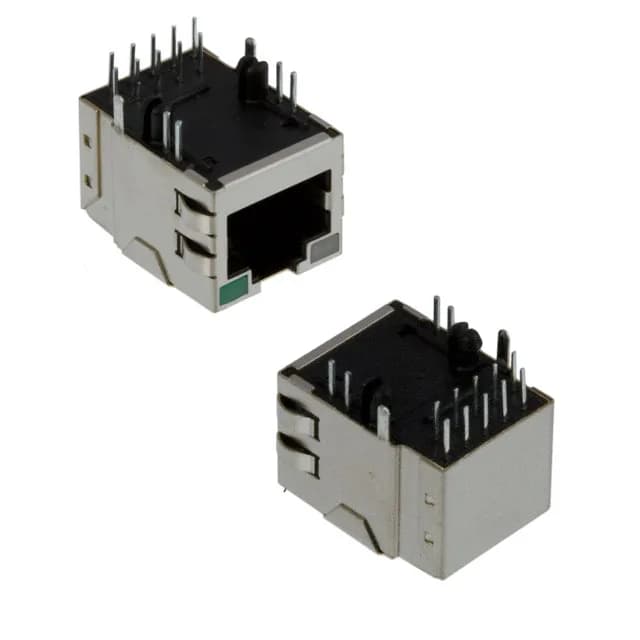

The TE Connectivity 5-6605809-5 is a single-port, right-angle RJ45 jack from the Mag45 series, built for 10/100/1000 Base-T and AutoMDIX Ethernet applications. It carries 8 cores per jack — the standard 8P8C pinout for twisted-pair copper Ethernet — with a shielded, EMI-fingered brass shell that bleeds common-mode noise to chassis ground before it reaches the PHY. The through-hole solder termination and integrated board lock anchor it against the insertion/withdrawal forces of a patched cable in a live rack.
In a patch panel or test fixture where the jack sees dozens of insertions, this thickness keeps contact resistance stable. The LED indicators — green and yellow-green — give link and activity status at a glance without extra external wiring.
Shielding and decoupling — built-in noise management
The shielded shell with EMI fingers mates to the panel cutout or chassis, creating a continuous ground path around the jack. Decoupling capacitance on the signal lines filters high-frequency noise right at the connector — no external ferrite or capacitor needed on the PCB for basic suppression.
