Right-angle header for board-edge cable exits

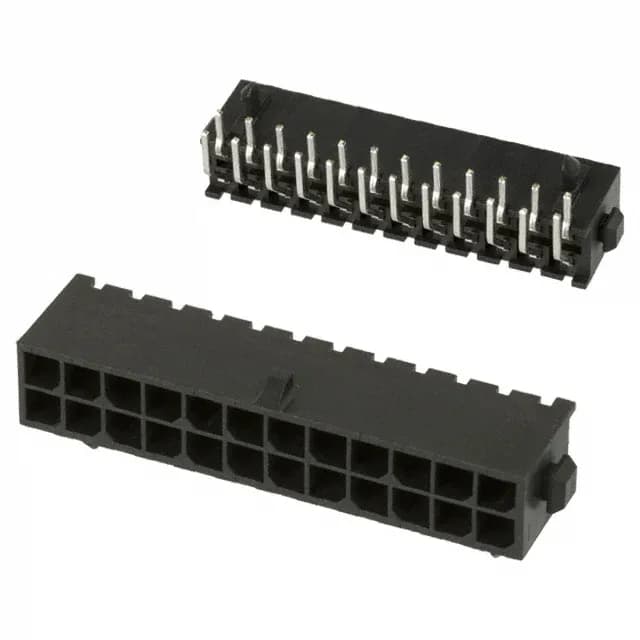

The 5-794618-4: This is a 24-position, 2-row header from the Micro MATE-N-LOK series, designed for board-to-cable/wire applications. The right-angle orientation lets the cable exit parallel to the PCB, which is useful in tight enclosures or when routing harnesses along a board edge. The 3.00 mm pitch and 3.00 mm row spacing are common for industrial and automotive signal interconnects. The locking ramp provides a positive audible click when mated with the corresponding Micro MATE-N-LOK receptacle. The 4-wall shrouding protects the male pins from bending during handling and guides the receptacle into alignment, reducing the chance of a bent pin during field assembly. The board lock secures the header to the PCB during wave or reflow soldering, keeping the pins perpendicular to the board surface.
Tin contacts and temperature range for industrial environments
Both the mating and post contact finishes are tin with 100.0 µin (2.54 µm) thickness. The operating temperature range is -40°C to 105°C. The current rating is listed as varies by wire gauge. The voltage rating is 250 V. The housing is black polyamide (PA) nylon with a UL94 V-0 flammability rating, which is standard for equipment inside an enclosure requiring flame retardance.
Active production and sourcing posture
We source this part to order against your BOM quantity. Current pricing and lead time are confirmed at quote time — no stock-holding claim is made here. Submit an RFQ for a firm price and delivery window.
