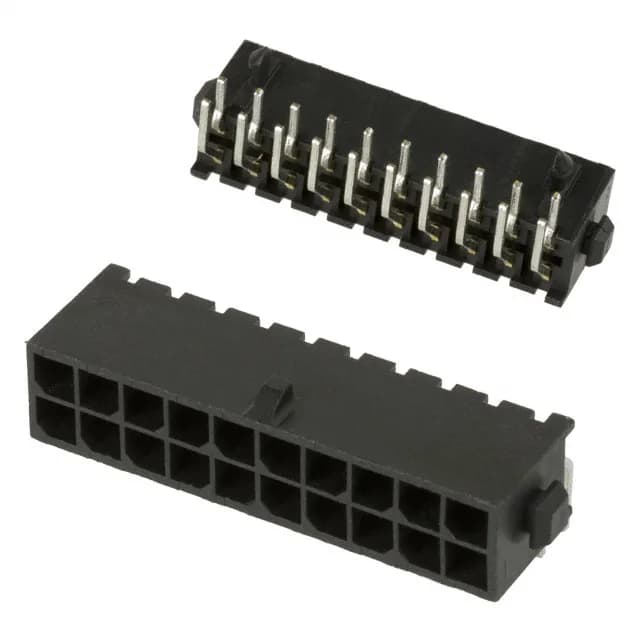

20-circuit right-angle header with board lock
The 5-794619-0 is the 20-circuit member of TE's Micro MATE-N-LOK header line, a shrouded board-to-wire header with a locking ramp for positive retention. Gold-plated mating contacts rated 250 V, through-hole right-angle mounting, and a board lock for SMT reflow retention.
Pitch, rows, and footprint
Dual-row layout with 0.118" (3.00mm) pitch and 0.118" (3.00mm) row spacing — the board footprint is shared across the Micro MATE-N-LOK series, so position count is the selection axis.
