Gold Mating Finish and Contact Reliability
The 5-794620-4: The tin tails are compatible with standard lead-free wave solder profiles.
Active Production and Sourcing
No stock-holding claim; quoted to order.
5-794620-4 TE Micro MATE-N-LOK Header 24 Pos R/A 3mm
MPN5-794620-4
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 24 circuits, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall, gold-plated mating contacts, board lock, UL94 V-0.
$5.0400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |

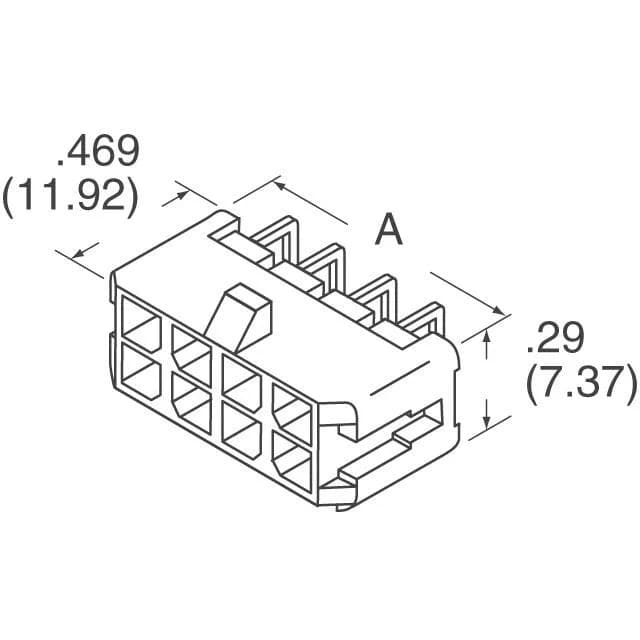

| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 24 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 5-794620-4 RoHS and REACH compliant?
Yes, it is ROHS3 compliant per TE's declaration. REACH compliance is not separately listed but typically follows the ROHS3 status for this series.
