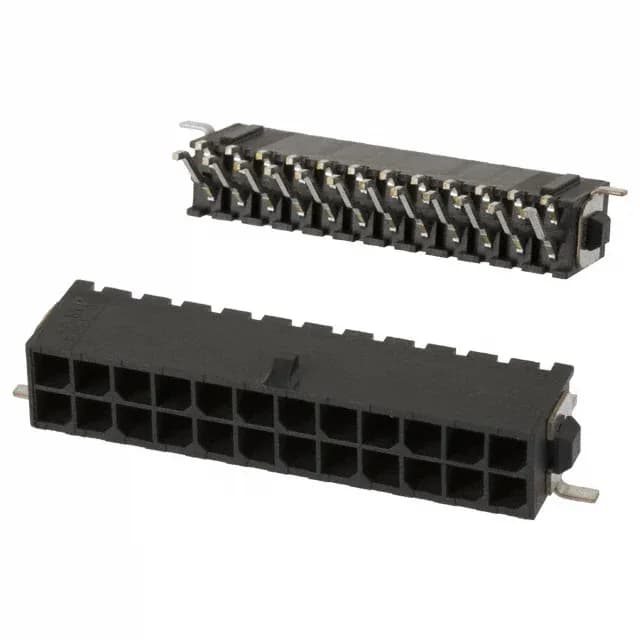

5-794629-4 TE Micro MATE-N-LOK Header SMD R/A 24 Pos 3mm

MPN5-794629-4
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 5-794629-4, 24 positions, 3.00mm pitch, surface-mount right-angle, shrouded 4-wall, gold mating finish, locking ramp, UL94 V-0.

$8.5707Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-794629-4 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount, Right Angle
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.290\" (7.37mm)
Insulation materialPolyamide (PA), Nylon

All specifications

5-794629-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions24
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Right-angle SMD header for board-edge wire-to-board

The 5-794629-4: It mounts surface-mount, right-angle, placing the mating face parallel to the PCB — a common orientation for board-edge cable exits where z-height above the board is constrained. The shrouded 4-wall housing protects the male pins during handling and guides the mating receptacle into alignment.

Gold mating finish for field-service durability

In a field-service scenario where the connector is cycled quarterly, that translates to over a century of reconnect life at the contact interface.

Sourced to order against the BOM quantity; current pricing and lead time confirmed at RFQ.
