20-Position Right-Angle Header for Board-to-Wire Harnesses

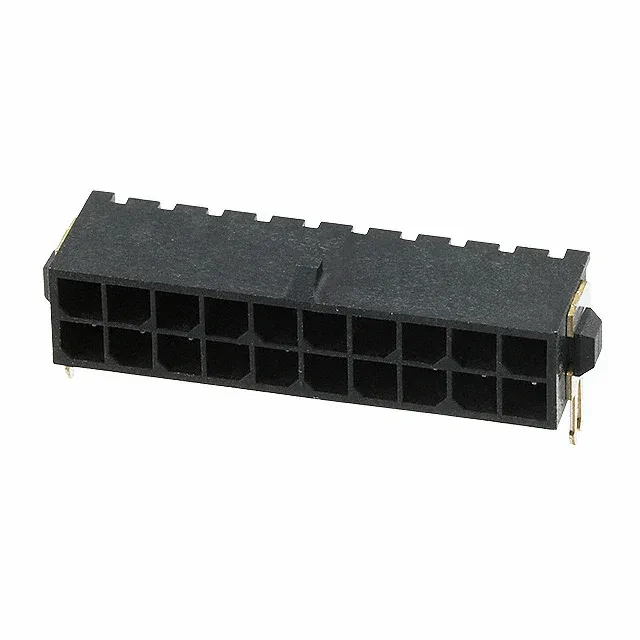

The 5-794677-0: This is a 20-position, dual-row, right-angle header from TE's Micro MATE-N-LOK series, on 3.00mm pitch. It mates with the matching Micro MATE-N-LOK receptacle housing and crimp terminals — a common choice for wire-to-board power and signal interconnects in general-purpose equipment. The shrouded 4-wall design protects the male pins during handling and guides the receptacle into alignment, reducing the risk of bent pins during assembly. Rated 250V, with current capacity depending on the wire gauge used in the mating terminal — the limiting factor is the wire, not the header contact.
Active Production — Sourced per RFQ
Current pricing and lead time are confirmed at quote time against your BOM quantity — no stock-holding claim, sourced per RFQ.
Mating Half and Termination
This header mates with any Micro MATE-N-LOK receptacle housing (e.g., 794617 series) loaded with the matching crimp terminals. The square male pins accept the receptacle's female contacts. Termination is through-hole solder — the right-angle orientation places the pin rows parallel to the board, saving vertical space in the enclosure.
