TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, 50 positions, single row, 0.100" (2.54 mm) pitch, through hole, solder termination, unshrouded, male pin, square contact, gold mating finish, 5 A, UL94 V-0, green insulation.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.465\" (11.81mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.228\" (5.80mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |

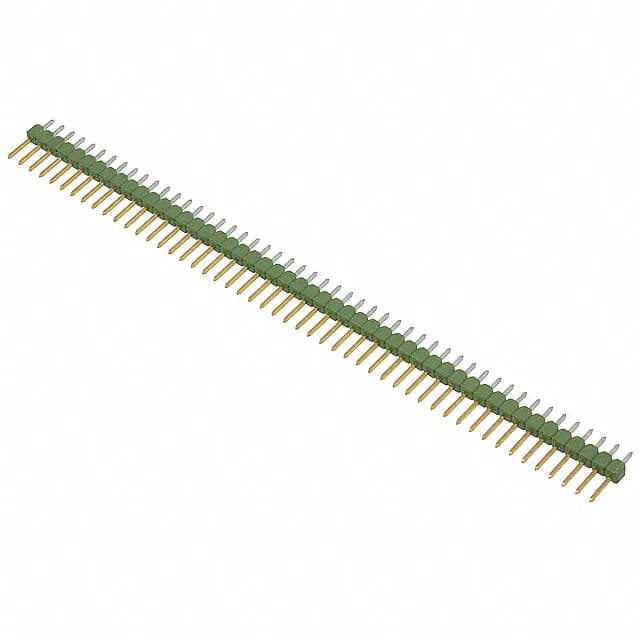

The 5-826646-0 is a 50-position, single-row, unshrouded header from TE's AMPMODU Mod II series. The male pins are square, gold-plated on the mating face (3.90µin) and tin-plated on the solder tails (118.1µin). The tin tails solder cleanly into plated through-holes.
This keeps the profile low and allows the header to mate with standard IDC sockets or individual crimp receptacles, but the pins are not protected against accidental bending during handling.
It mates with standard AMPMODU Mod II receptacles or IDC sockets that accept 0.025" square pins.
