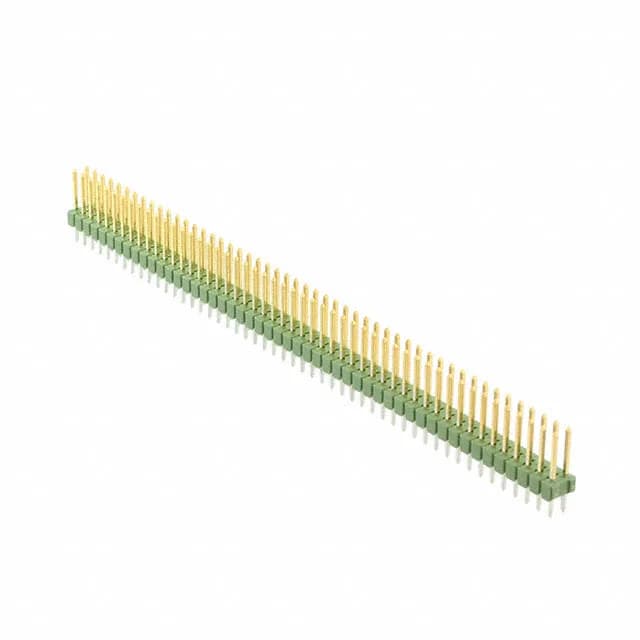

TE Connectivity AMP Connectors AMPMODU Mod II header, breakaway, order code 5-826658-0, 100 positions, dual row, 0.100" (2.54mm) pitch, 5A, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 5A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Green |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polybutylene Terephthalate (PBT) |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 100 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.551\" (14.00mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.315\" (8.00mm) |
| Contact finish thickness - post | 118.1µin (3.00µm) |
| Contact finish thickness - mating | 3.90µin (0.099µm) |
The 5-826658-0 is the 100-position member of TE's AMPMODU Mod II breakaway header line, unshrouded with a push-pull fastening system. It carries gold-plated mating contacts rated 5A per contact and mounts through-hole with solder termination.
