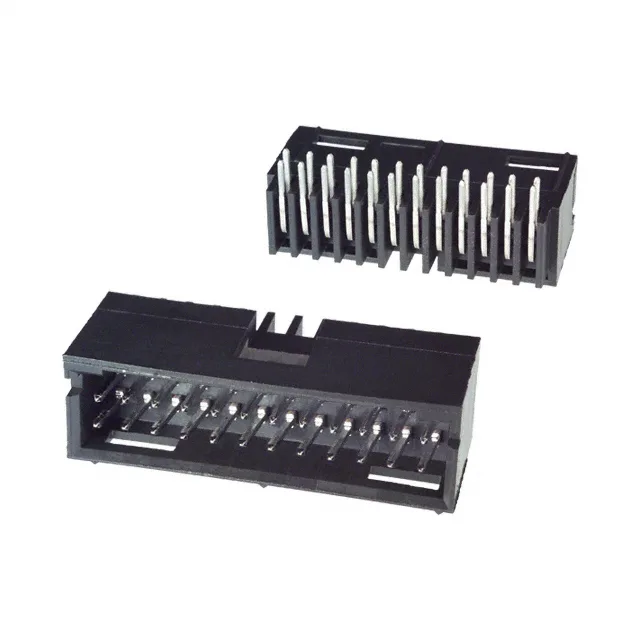

TE AMPMODU Mod II header, order code 5-87579-9, 24 positions, dual row, 0.100" (2.54 mm) pitch, 3 A, tin-plated mating contacts, through-hole right-angle, solder termination, shrouded - 4 wall, detent lock.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-87579-9 is the 24-position member of TE's AMPMODU Mod II shrouded header line, dual-row, with all positions loaded.
Through-hole right-angle mounting with 0.135" (3.43 mm) post length. The 4-wall shrouded housing and detent lock protect the mating interface against misalignment and vibration in board-to-board or cable applications.
