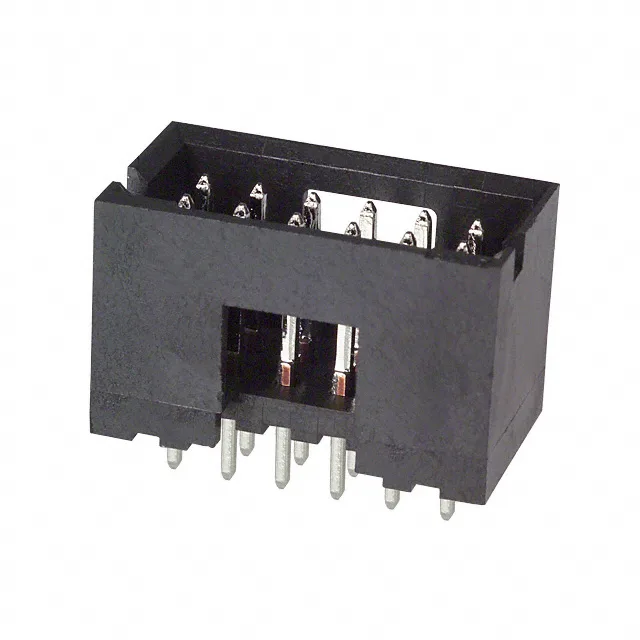

5-87589-2 TE Connectivity AMPMODU Mod II Header, 12 Pos

MPN5-87589-2
Active

TE Connectivity AMP Connectors, AMPMODU Mod II, Header, 12 Positions, 2.54mm Pitch, Dual Row, Shrouded - 4 Wall, Through Hole, Solder, Tin Mating/Post, Detent Lock, Tray

$2.8200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-87589-2 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialPolyamide (PA), Nylon, Glass Filled
Material flammability ratingUL94 V-0

All specifications

5-87589-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingTin
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

The 5-87589-2 is a 12-position, dual-row header from the AMPMODU Mod II series, on a 0.100" (2.54mm) pitch.

Pitch, Pinout, and Footprint Fit

The 0.100" (2.54mm) pitch and 0.100" row spacing define the PCB footprint. The 12 positions are fully loaded, with a square male pin contact. The overall contact length is 0.533" (13.55mm), with a mating length of 0.318" (8.08mm) and a post length of 0.125" (3.18mm).

The tin-plated mating and post surfaces (100.0µin thickness) are suitable for moderate-cycle applications where gold is not required.

Frequently asked questions

What is the pinout of 5-87589-2?

The 5-87589-2 is a 12-position, dual-row header with all positions loaded. The pinout follows the standard AMPMODU Mod II grid: two rows of six pins each on 0.100" (2.54mm) row spacing. The mating half determines the signal assignment; the header itself is unkeyed within the shroud.
