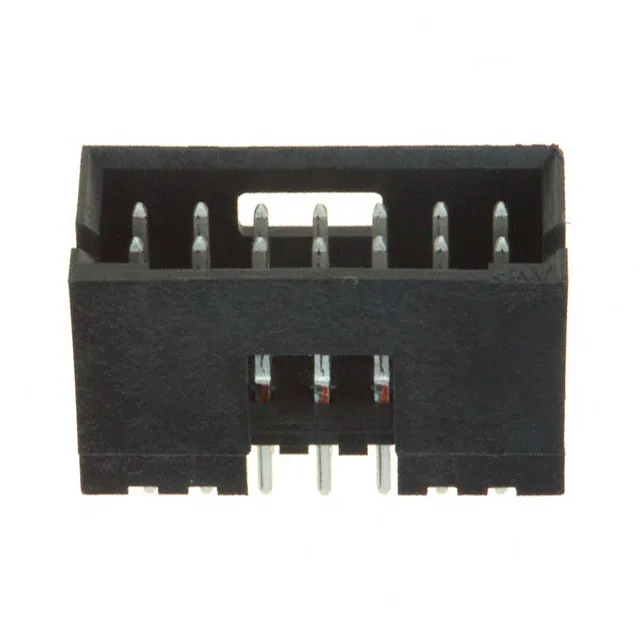

TE Connectivity AMP Connectors AMPMODU Mod II, 5-87589-3, Header, 14 Positions, 0.100" (2.54mm) Pitch, Through Hole, Shrouded - 4 Wall, Detent Lock, Tin Mating/Post, 3 A, -65°C ~ 105°C, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-87589-3: The detent lock provides a positive hold without a separate latch, reducing the chance of accidental disconnection in vibration-prone assemblies.
The 0.440" (11.18mm) insulation height leaves clearance for components under the header on the PCB.
Yes, it is a shrouded header with a full 4-wall design, which protects the pins and prevents mis-mating.
It is rated 3 A per contact, typical for signal-level interconnects at this pitch.
