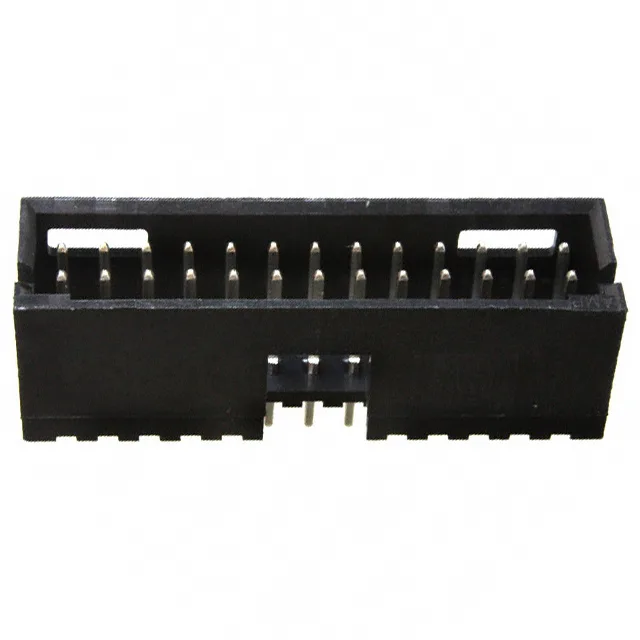

TE Connectivity AMP Connectors AMPMODU Mod II, 26-position dual-row shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, tin-plated male pins, rated 3 A per contact, UL94 V-0 black nylon housing, active production.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Polyamide (PA), Nylon, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Tin is a good choice for moderate-cycle applications (under 50 mates) in clean indoor environments; the 100 µinch thickness gives a solid wear layer for repeated insertions without exposing the base metal.
Insulation height of 0.440" (11.18 mm) above the board surface; account for this in z-height clearance when stacking boards or fitting inside a shallow enclosure.
This shrouded header mates with AMPMODU Mod II receptacles of the same pitch and circuit count — typically a 26-position, 0.100" pitch receptacle housing with crimp sockets or an IDC ribbon-cable connector. Confirm the mating half part number against your assembly drawing.
Yes, a detent lock on the shroud. It provides positive retention when mated, reducing the risk of disconnection under vibration.
