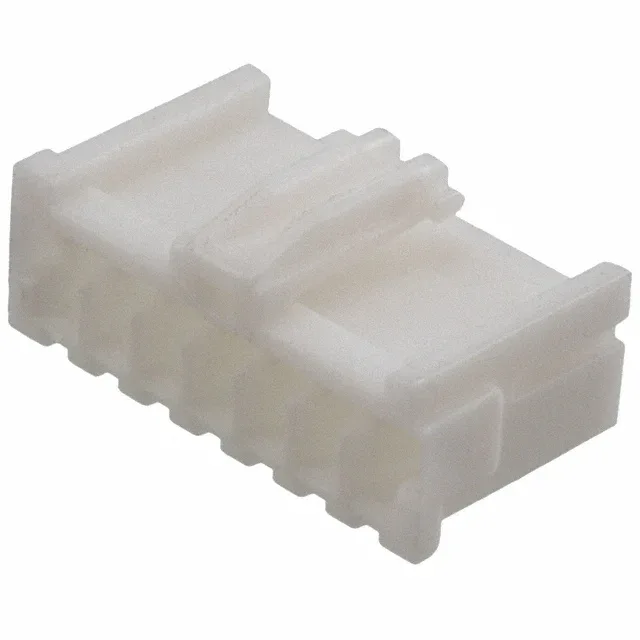

TE Connectivity Signal Double Lock plug housing, 5-917691-1, 7 positions, 2.50mm pitch, 1 row, natural PA66, free-hanging, locking ramp, crimp termination, contacts not included.
| Parameter | Value |
|---|---|
| Series | Signal Double Lock |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Locking Ramp |
| Operating temperature | -30°C ~ 105°C |
| Color | Natural |
| Insulation material | Polyamide (PA66), Nylon 6/6 |
| Note | Contacts Not Included |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 7 |
The most common mistake with this part is assuming it comes with terminals. It does not — the note 'Contacts Not Included' is explicit. The 2.50mm pitch and single-row layout are standard for the Signal Double Lock family, so the mating receptacle housing is the same series, same pitch, same row count — confirm the circuit count matches your BOM line.
The difference is one circuit — 7 positions vs 6.
Submit an RFQ for a firm quote with lead time.
No. The 5-917691-1 is a housing only — contacts are not included. You must order the matching female crimp socket terminals separately (TE part number 1-917691-1 or equivalent).
The 5-917691-1 has 7 positions on a 0.098" (2.50mm) pitch in a single row.
It is a plug housing that accepts female socket contacts — so it is the female side of the connection. The mating half is a receptacle housing with male pins.
