Two-Position Receptacle Housing for Standard Timer Harnesses

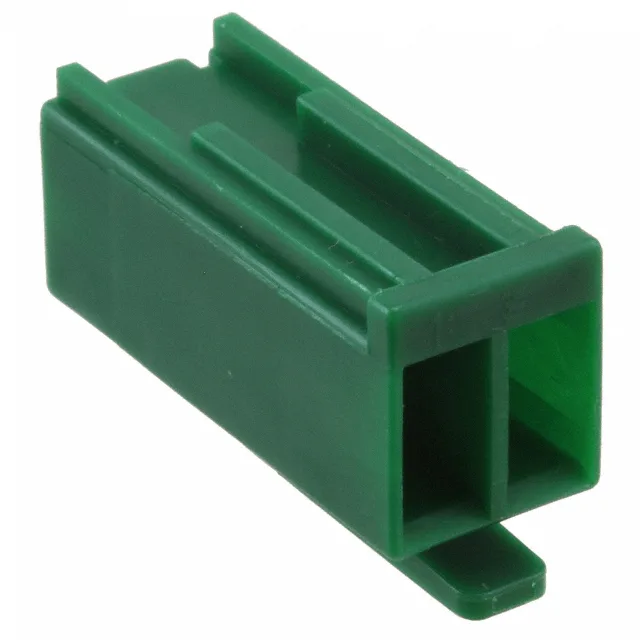

The TE Connectivity 5-928247-2 is a 2-position receptacle housing from the Standard Timer series, built for free-hanging (in-line) wire-to-wire or wire-to-device connections. The 5.00mm pitch gives generous spacing between terminals — enough for 16-20 AWG power or signal circuits without crowding the crimp tool or the seal cavity. The green polyamide (nylon) housing carries a latch lock that snaps onto the mating plug and holds under vibration; the wide -40°C to 110°C operating range covers under-hood automotive, industrial cabinet, and outdoor telecom enclosures. This is the housing only — contacts are ordered separately (crimp female sockets, sold by the reel or strip).
What You Need to Order Alongside It
The listing note is clear: contacts are not included. For a complete mated pair you need the matching Standard Timer plug housing (same series, same pitch) and the crimp female socket terminals. The 5.00mm pitch is the same as the classic Standard Timer power contacts, so if you already run those terminals in your press you can feed this housing without a tooling change. The latch lock on this receptacle mates with the locking ramp on the plug — the pair locks audibly when fully seated.
