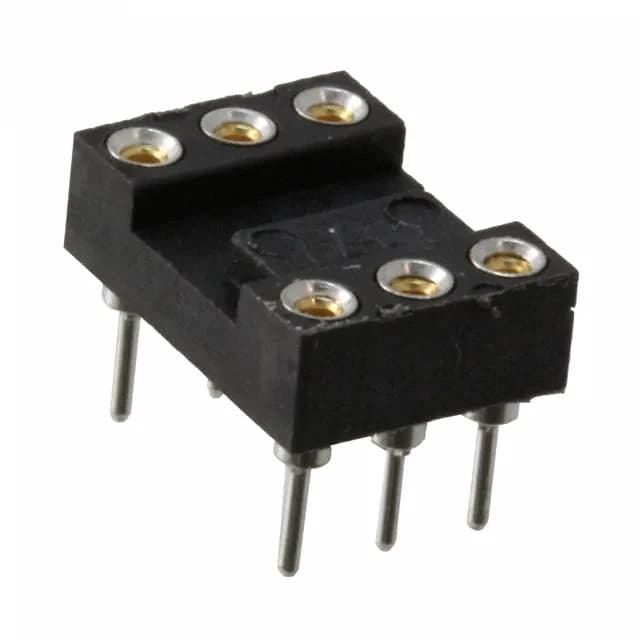

6-position DIP header with closed frame
The 506-AG11D-ESL-LF: Operating temperature range -55°C to 125°C.
Obsolete — sourcing guidance
TE Connectivity AMP Connectors lists the 506-AG11D-ESL-LF as Obsolete.
TE Connectivity 506-AG11D-ESL-LF DIP Header, 6 Pos
MPN506-AG11D-ESL-LF
Obsolete
TE Connectivity AMP Connectors Series 500 DIP header, order code 506-AG11D-ESL-LF, 6 positions (2 x 3), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, gold mating contacts, through-hole solder termination, tube package.
$12.1515Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Nickel |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | Flash |
| Contact finish thickness - mating | Flash |
| Number of positions or pins | 6 (2 x 3) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 506-AG11D-ESL-LF?
A board redesign may be required to use a current-production header with the same pitch and row spacing.
