$0.6600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | 5 |
| Tail type | No Tail |
| Mounting hole diameter | 0.101\" ~ 0.103\" (2.57mm ~ 2.62mm) |
| Operating temperature | -65°C~125°C |
| Socket depth | 0.275\" (6.99mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Features | Closed Bottom |
| Termination | Solder |
| Contact finish | Tin |
| Flange diameter | 0.118\" (3.00mm) |
| Length - overall | 0.288\" (7.32mm) |
| Accepts pin diameter | 0.042\" ~ 0.049\" (1.07mm ~ 1.24mm) |
| Contact finish thickness | 100.0µin (2.54µm) |
Sourcing this connector

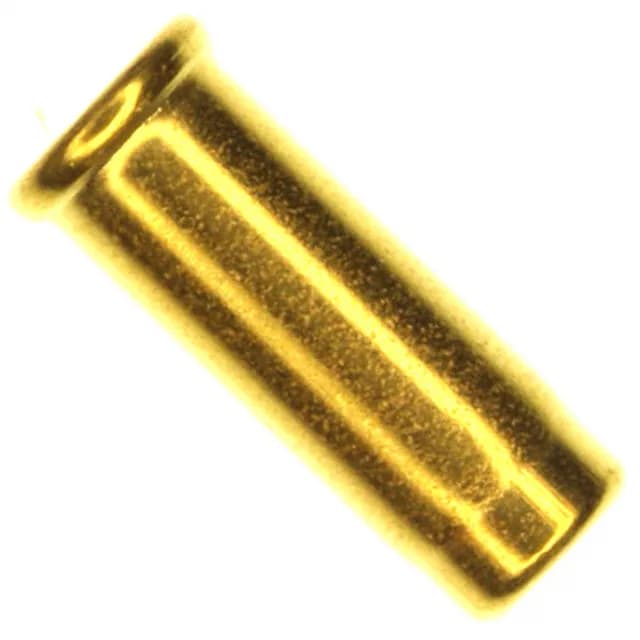

TE Connectivity AMP Connectors 50871-8 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against TE Connectivity AMP Connectors and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
